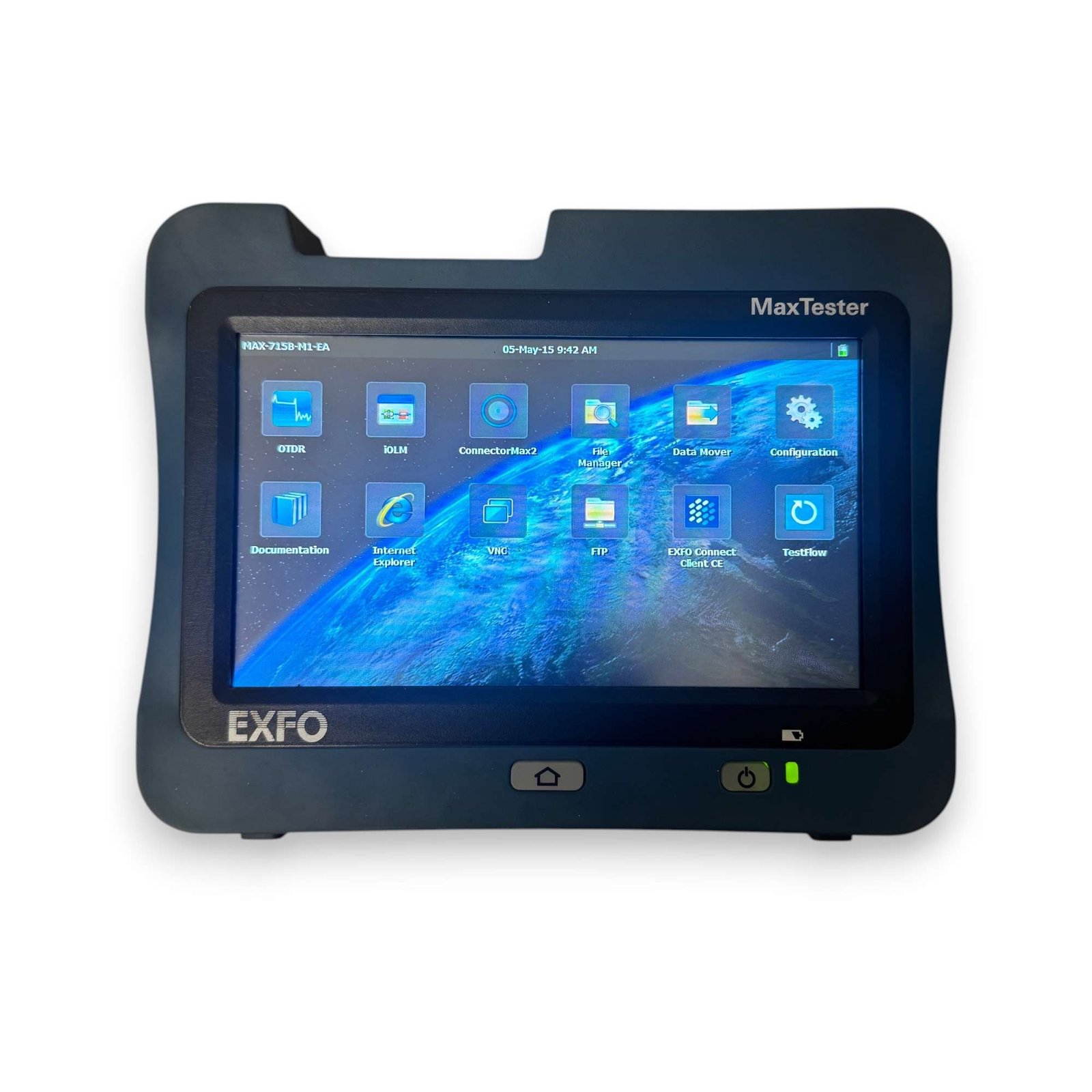

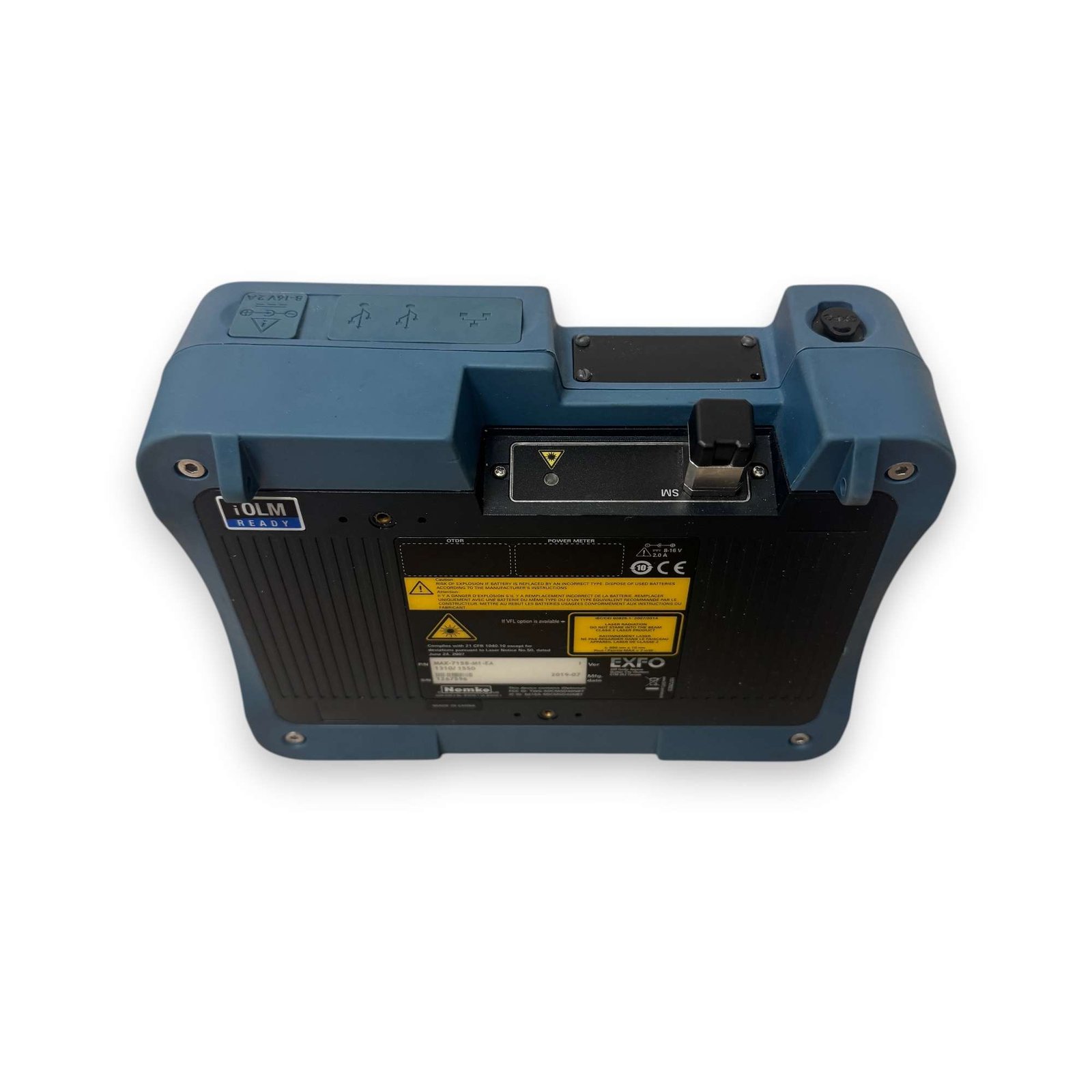

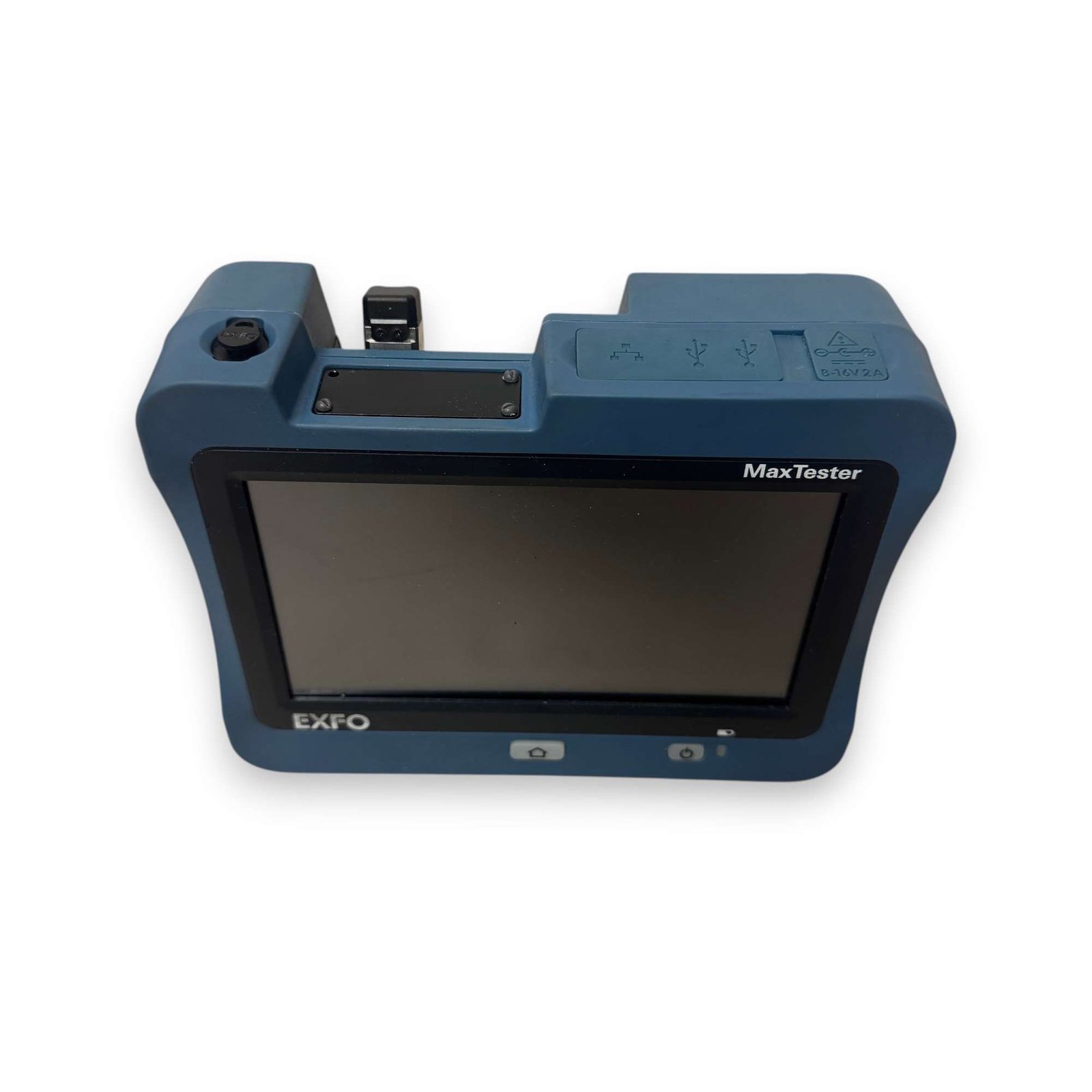

Used EXFO MaxTester 715B-M1-EA — Certified OTDR 30 dB, Grade B

Overview

The used EXFO 715B-M1-EA, part of the EXFO MaxTester series, is a single-mode OTDR designed for fiber optic network characterization, fault location, and loss measurement across distances up to 160 km. Built around a 7-inch outdoor-enhanced touchscreen and offering dual-wavelength operation at 1310/1550 nm with an integrated 1625 nm live fiber port, this instrument addresses the needs of field technicians, network engineers, and telecom infrastructure teams requiring a reliable, portable test solution. The MaxTester platform’s compact form factor, 12-hour battery autonomy, and PON-compatible dead zone performance make it well suited for demanding field deployments.

Technical Specifications

• Platform: EXFO MaxTester series
• Wavelengths: 1310 ± 30 nm / 1550 ± 30 nm
• Dynamic Range: 30 dB (1310 nm) / 28 dB (1550 nm)
• Event Dead Zone: 1 m
• Attenuation Dead Zone: 4 m
• PON Dead Zone: 35 m
• Distance Range: 0.1 to 160 km
• Pulse Width: 5 to 20,000 ns
• Sampling Resolution: 0.04 to 5 m
• Sampling Points: Up to 256,000
• Loss Resolution: 0.001 dB
• Loss Threshold: 0.01 dB
• Linearity: ±0.05 dB/dB
• Distance Uncertainty: ±(0.75 + 0.0025% × distance + sampling resolution) m
• Reflectance Accuracy: ±2 dB
• Real-Time Refresh Rate: 3 Hz (typical)
• Measurement Time: User-defined, up to 60 minutes
• Live Fiber Port (SM): 1625 nm highpass filter, >1595 nm; isolation >50 dB from 1270–1585 nm

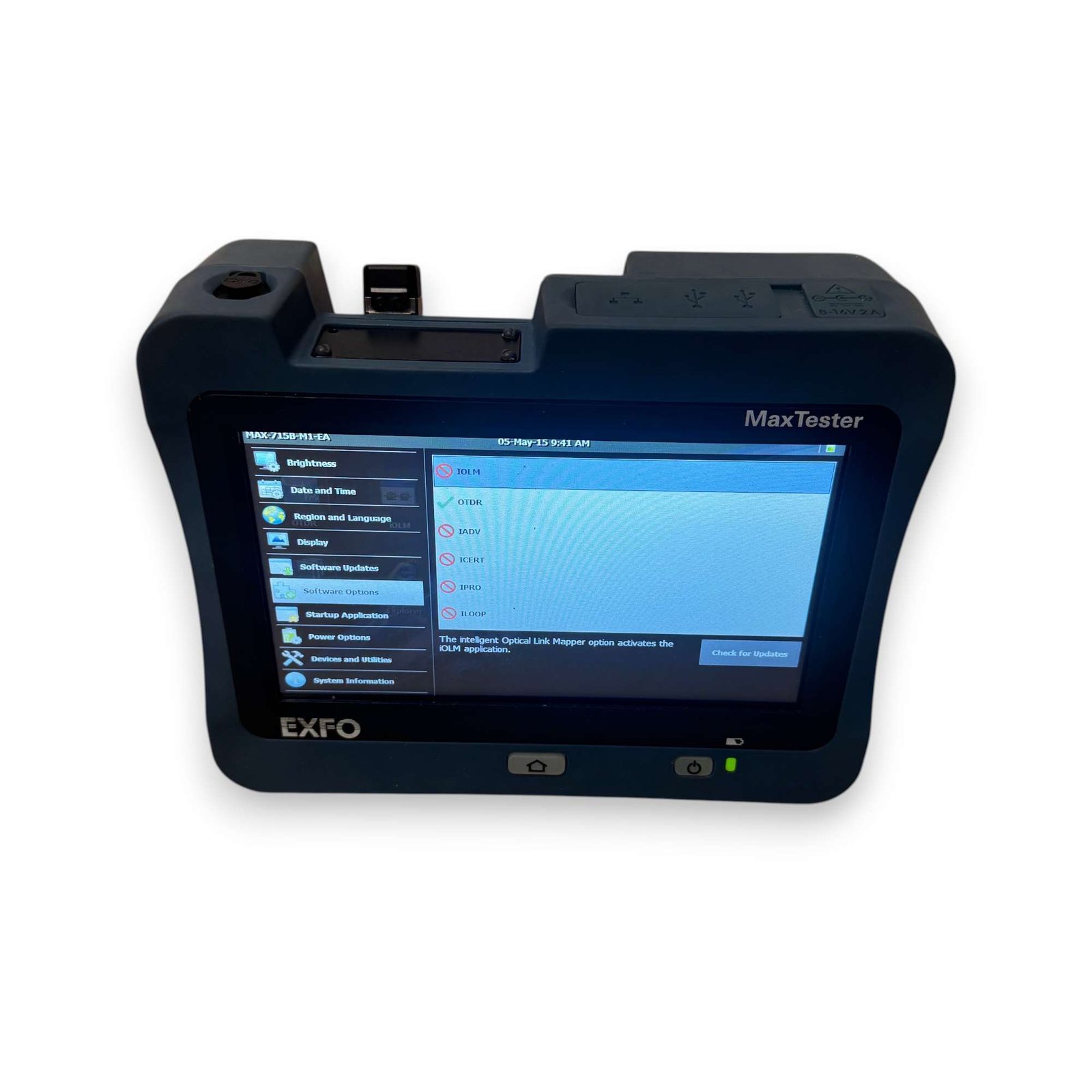

• Display: 7-inch (178 mm) outdoor-enhanced TFT touchscreen, 800 × 480 resolution
• Storage: 2 GB internal memory (approx. 20,000 OTDR traces)

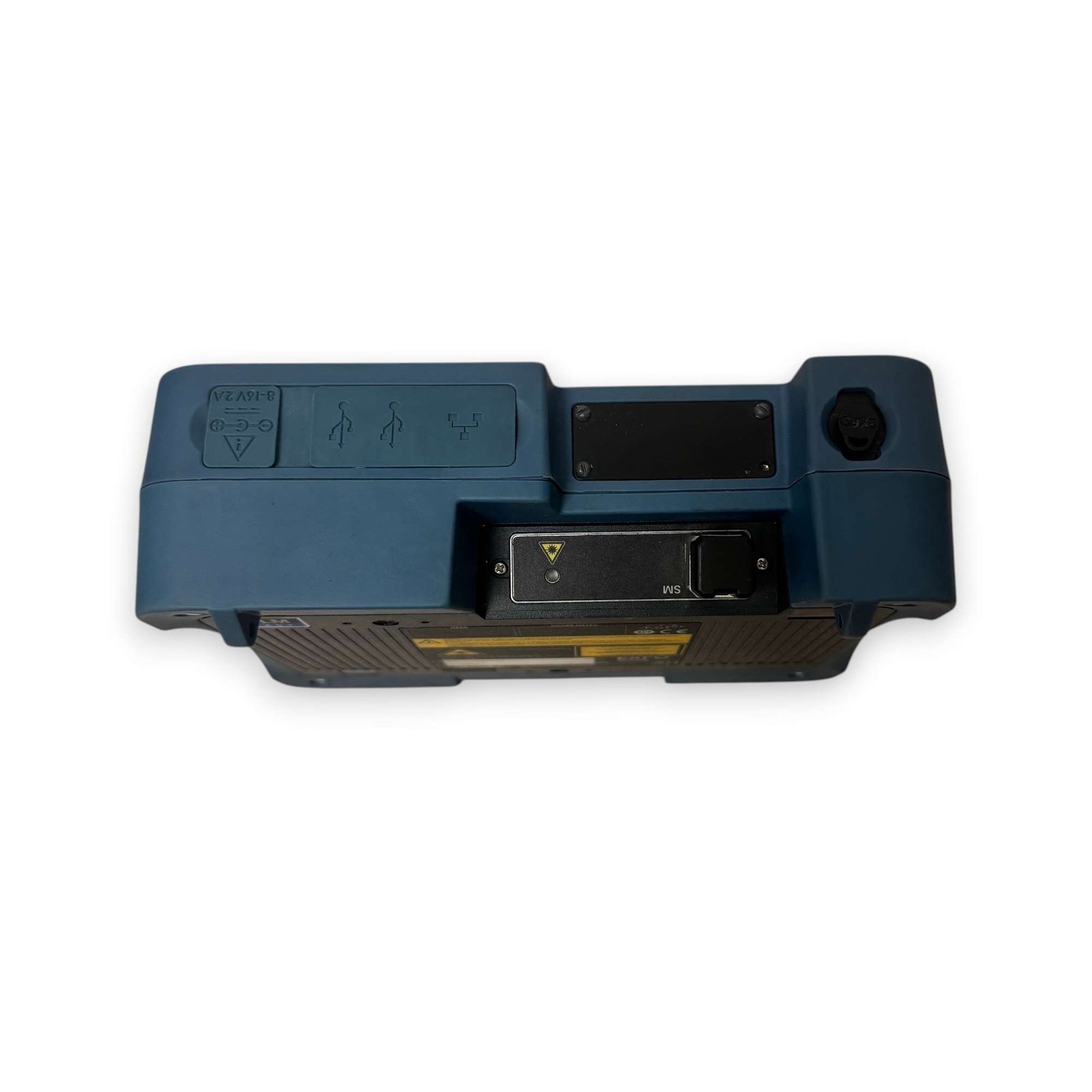

• Interfaces: 2× USB 2.0, RJ45 LAN 10/100 Mbit/s
• Battery: Rechargeable lithium-polymer, 12 hours per Telcordia TR-NWT-001138
• Power Supply: AC/DC adapter, 100–240 VAC, 50–60 Hz; 9–16 V DC input, 15 W minimum
• OTDR Option: Active

Condition — Grade B

This unit is graded B — Good: it presents light traces of normal field use on its exterior surfaces, consistent with standard operational handling, but shows no damage affecting structural integrity or measurement performance. All functions of the MaxTester 715B-M1-EA — including the OTDR module, touchscreen, connectivity ports, and battery system — have been verified as fully operational. The unit is suitable for immediate deployment in professional environments.

Common Use Cases — used EXFO 715B-M1-EA MaxTester

The used EXFO 715B-M1-EA MaxTester is well suited to a broad range of field and lab applications, including:

• FTTH/FTTP network commissioning and acceptance testing — verifying splice and connector loss across passive optical network deployments
• Fault localization on long-haul single-mode fiber spans — distance range up to 160 km covers metro and regional infrastructure
• Live fiber testing with built-in 1625 nm port — allows in-service characterization without traffic interruption
• PON network troubleshooting — 35 m PON dead zone supports testing close to optical splitters and ONTs
• Maintenance and periodic fiber plant audits — high sampling point count and storage capacity facilitate systematic infrastructure documentation

Compatible Accessories

The used EXFO 715B-M1-EA MaxTester is compatible with EXFO’s full range of interchangeable fiber optic connector adapters (SC, LC, FC, ST), and supports EXFO’s FastReporter and iOLM software platforms for trace analysis, reporting, and automated pass/fail assessment. Additional launch and receive cables in various lengths and fiber types can be used to eliminate near-end dead zones and extend measurement reach in both standard and PON configurations.

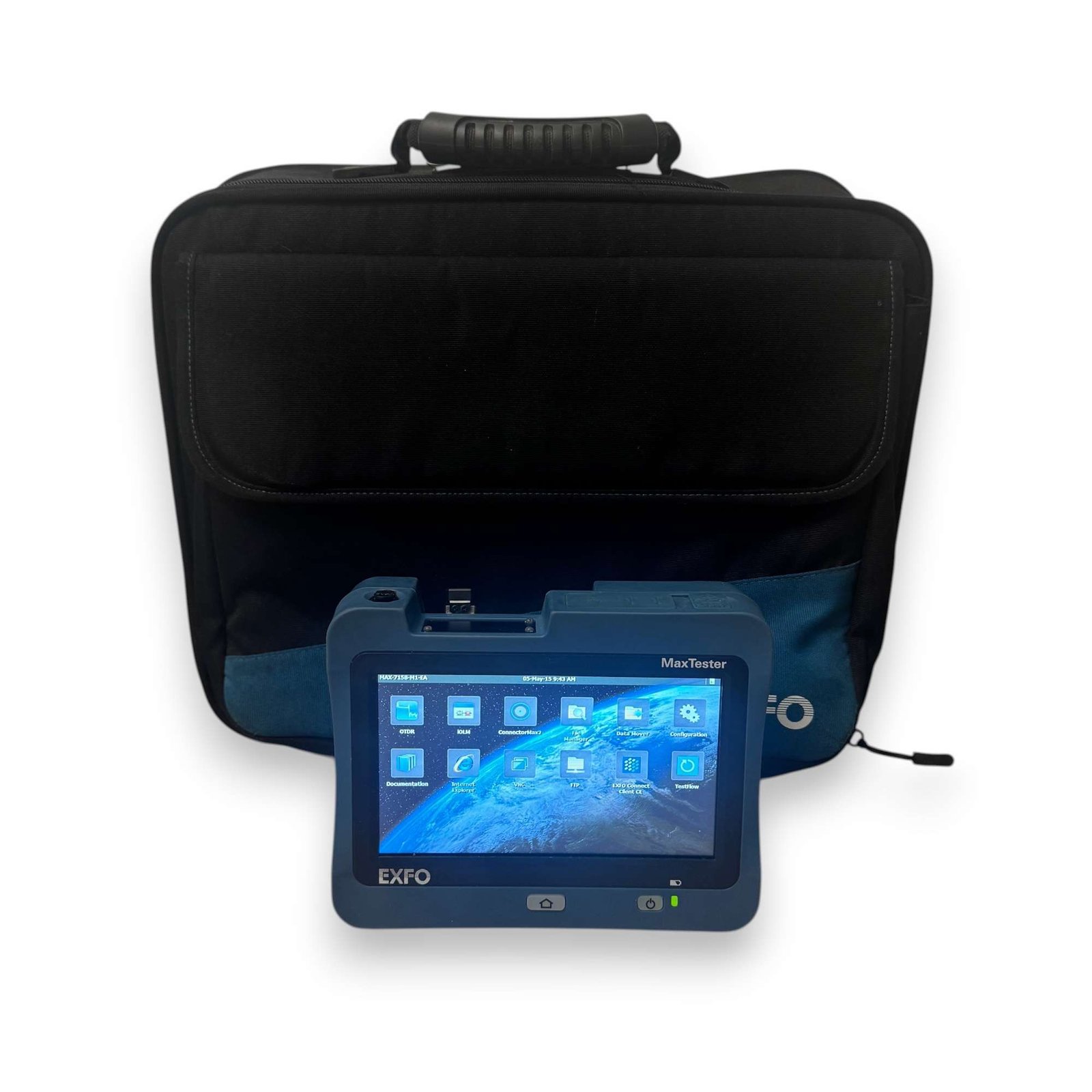

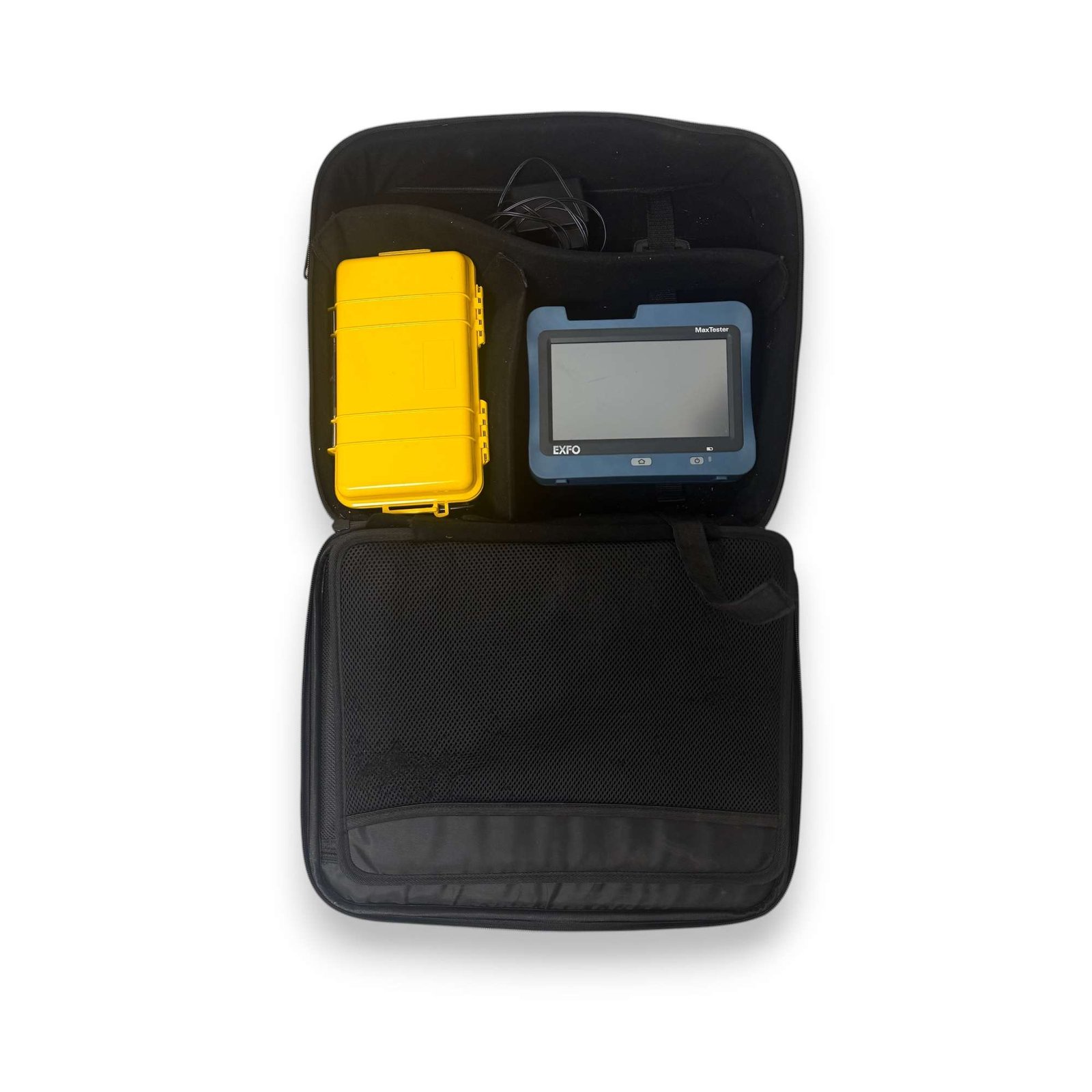

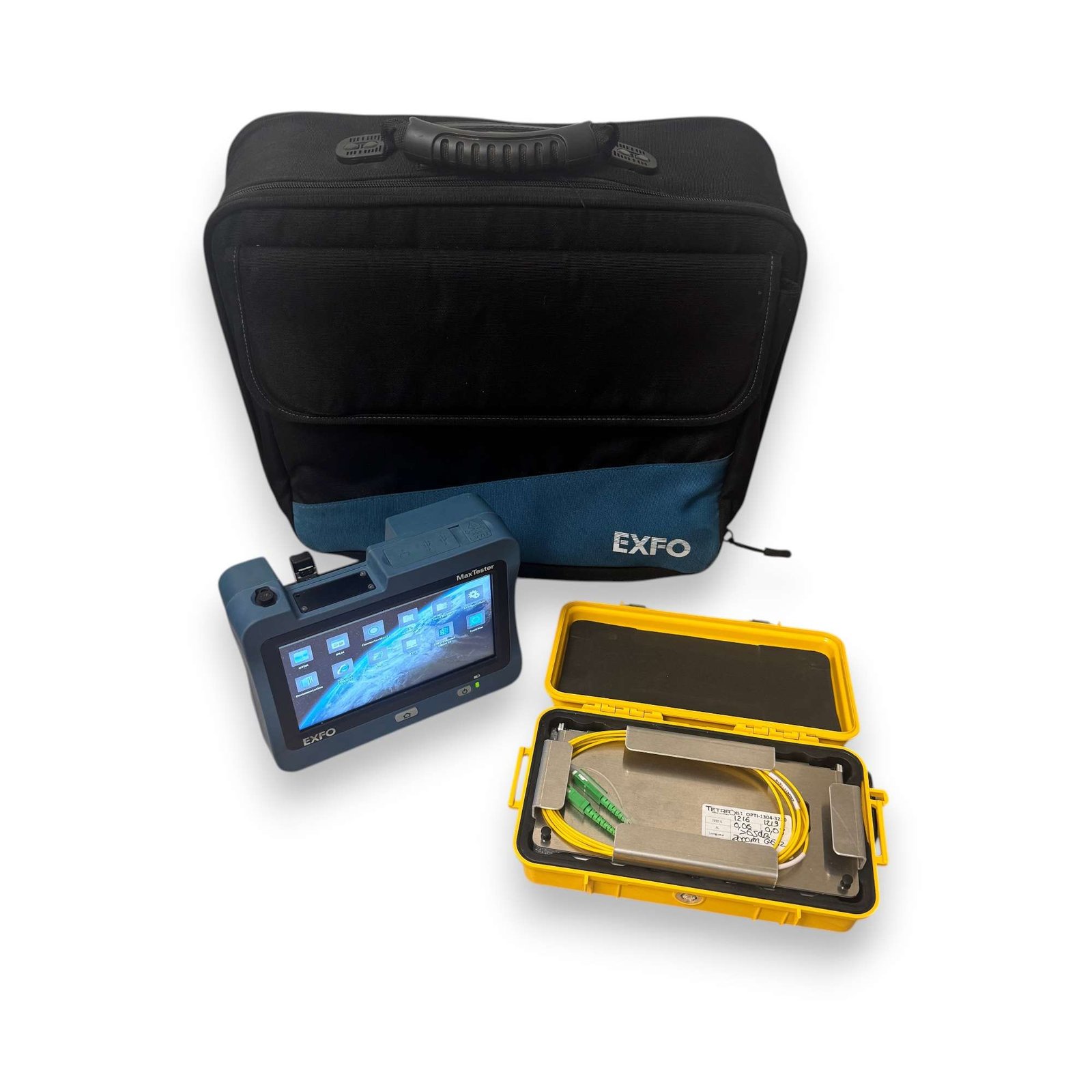

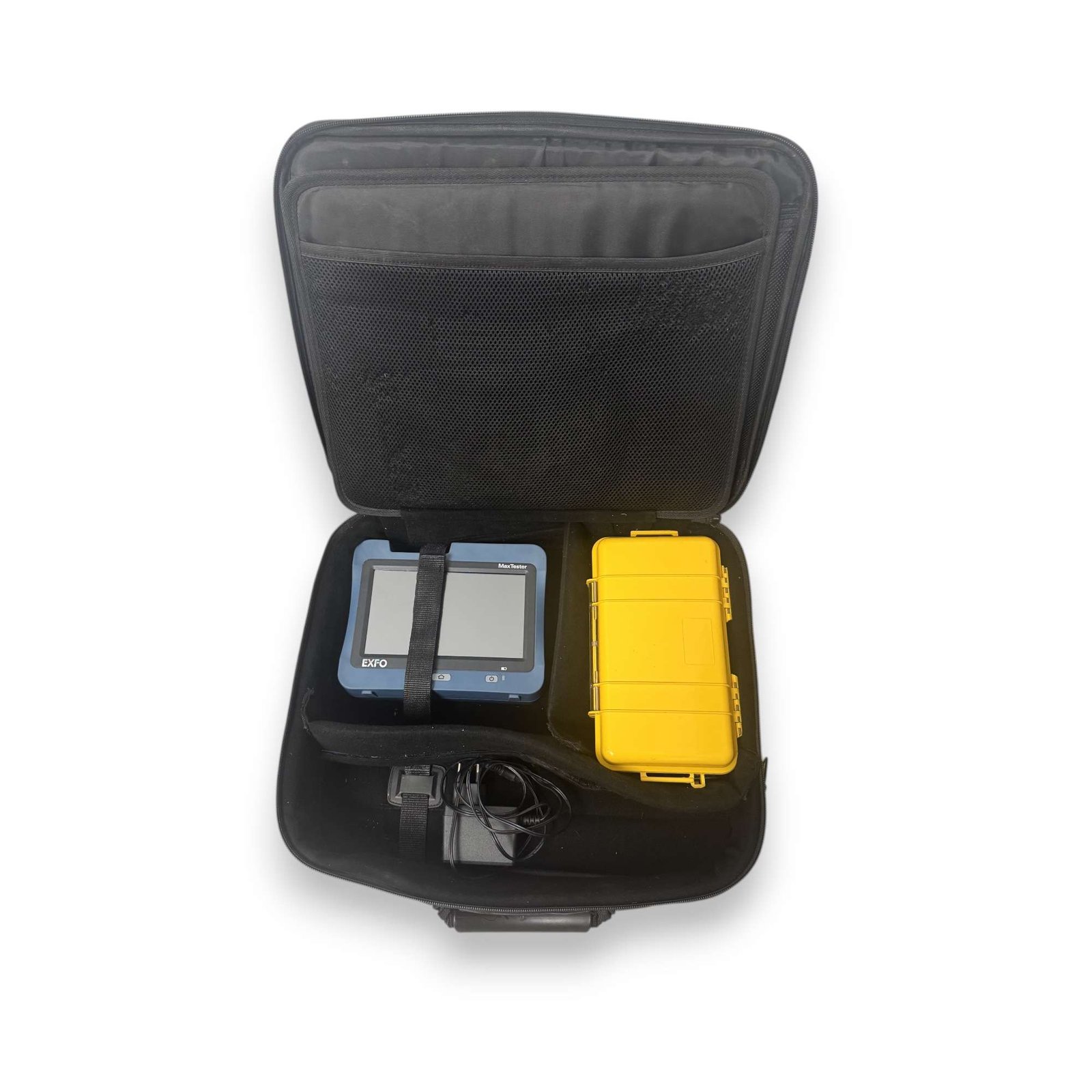

What’s Included

• EXFO MaxTester 715B-M1-EA OTDR unit
• AC power adapter / charger
• Rechargeable lithium-polymer battery pack

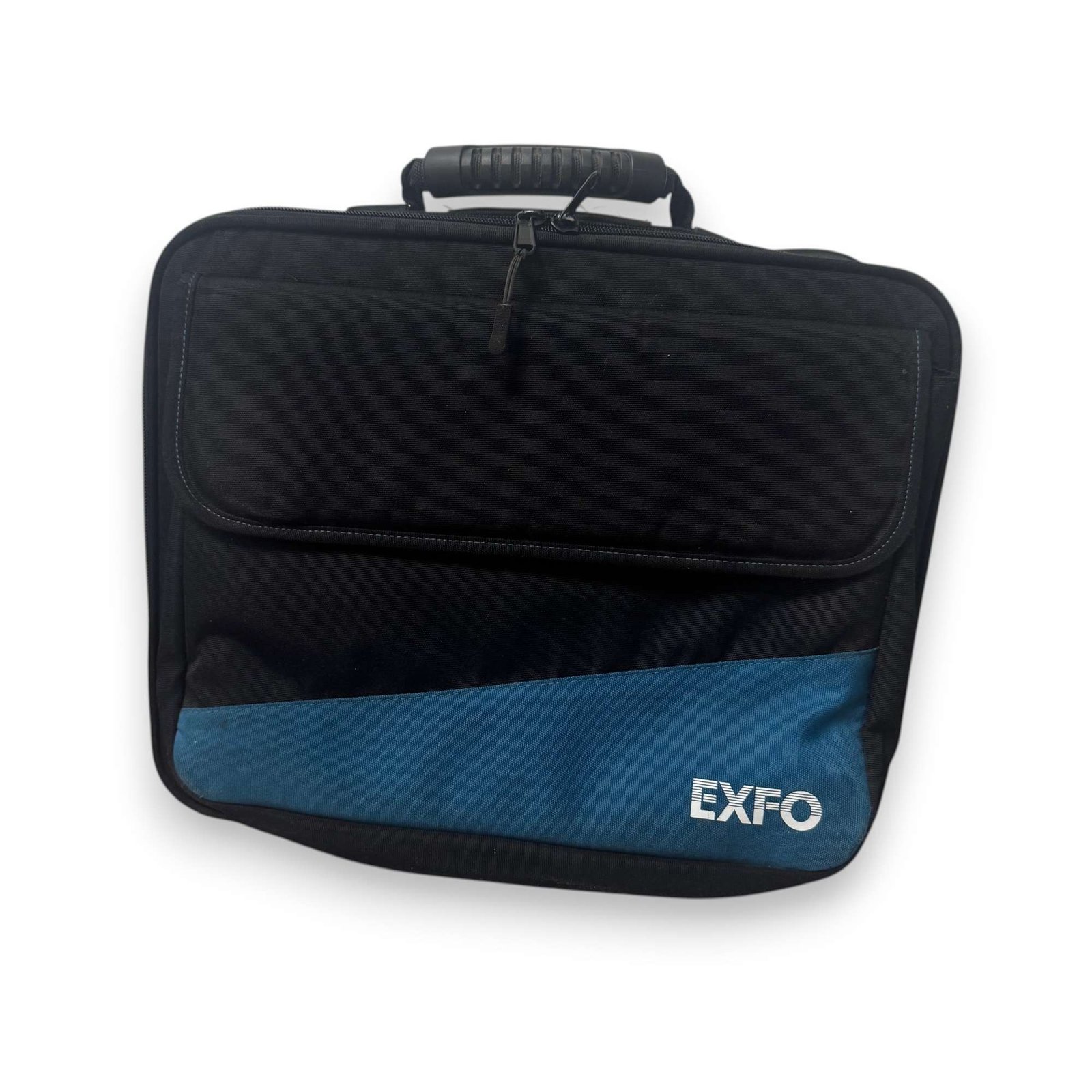

• Carrying bag
• Launch cable — 2,000 m, G.652 single-mode fiber

Shipping & Warranty

This unit ships from Europe (EU) and is dispatched within 1 business day of order confirmation. All purchases are covered by a 30-day return policy; items must be returned in the condition received.
