Description
Overview
The Anritsu MT9090A Network Master is a modular, field-portable Ethernet test platform designed for telecom operators, network service teams, and field technicians who need to qualify, activate, and troubleshoot Ethernet services on-site. This unit is fitted with the MT909060A1 Gigabit Ethernet module and has Options 1, 2, and 3 activated, enabling RFC 2544 and Y.1564 testing workflows in a palm-size, single-hand-operated enclosure. This Grade B unit from OMIWAA provides access to a fully operational MT9090A at significantly lower cost than new, making it a practical option for teams adding field test capacity or standardizing on a proven Ethernet qualification platform.
Technical Specifications
The following specifications are based on the Anritsu MT9090A Network Master manufacturer documentation and confirmed unit configuration.
Anritsu MT9090A Network Master Specifications
- Platform: MT9090A Network Master — modular architecture, field-interchangeable modules
- Module fitted: MT909060A1 — Gigabit Ethernet test module (ref. MU909060A-E-L-1)

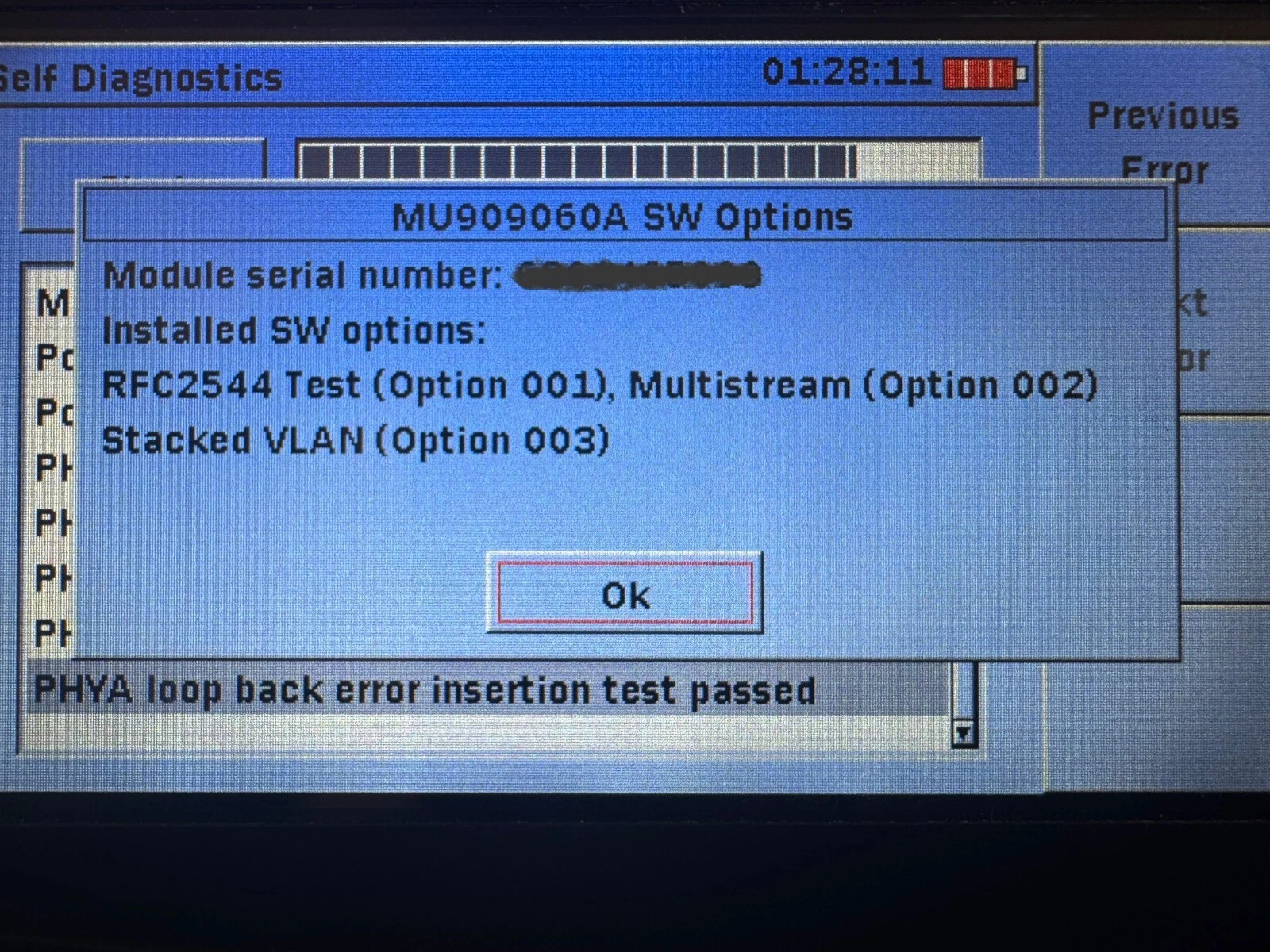

- Options activated: MT9090A Opt. 1 / 2 / 3
- Tests supported: Electrical cable test, Ping test, BER (Bit Error Rate) testing, Traffic generation and reception, RFC 2544 (throughput, latency, frame loss, back-to-back), Y.1564 (Ethernet service activation testing), Multistream testing, Test Automator
- Reporting: PDF and CSV export
- Display: 4.3-inch high-resolution color LCD, readable indoors and outdoors
- Dimensions: 190 × 98 × 48 mm
- Weight: 700 g
- Power: Dual battery — rechargeable NiMH or standard AA alkaline
- Enclosure: Sealed, fanless — no vents — connector port cover included
- Form factor: Palm-size, single-hand operation
Key Performance Parameters
- RFC 2544 test suite: throughput, latency, frame loss, and back-to-back frame burst testing for Ethernet service qualification
- Y.1564 Ethernet service activation testing: service configuration and performance validation in a single test pass
- Multistream traffic generation and BER testing for simultaneous multi-service verification
- Sealed fanless enclosure with dual-battery architecture (NiMH or AA alkaline) for fieldwork without AC power dependency
Condition Report

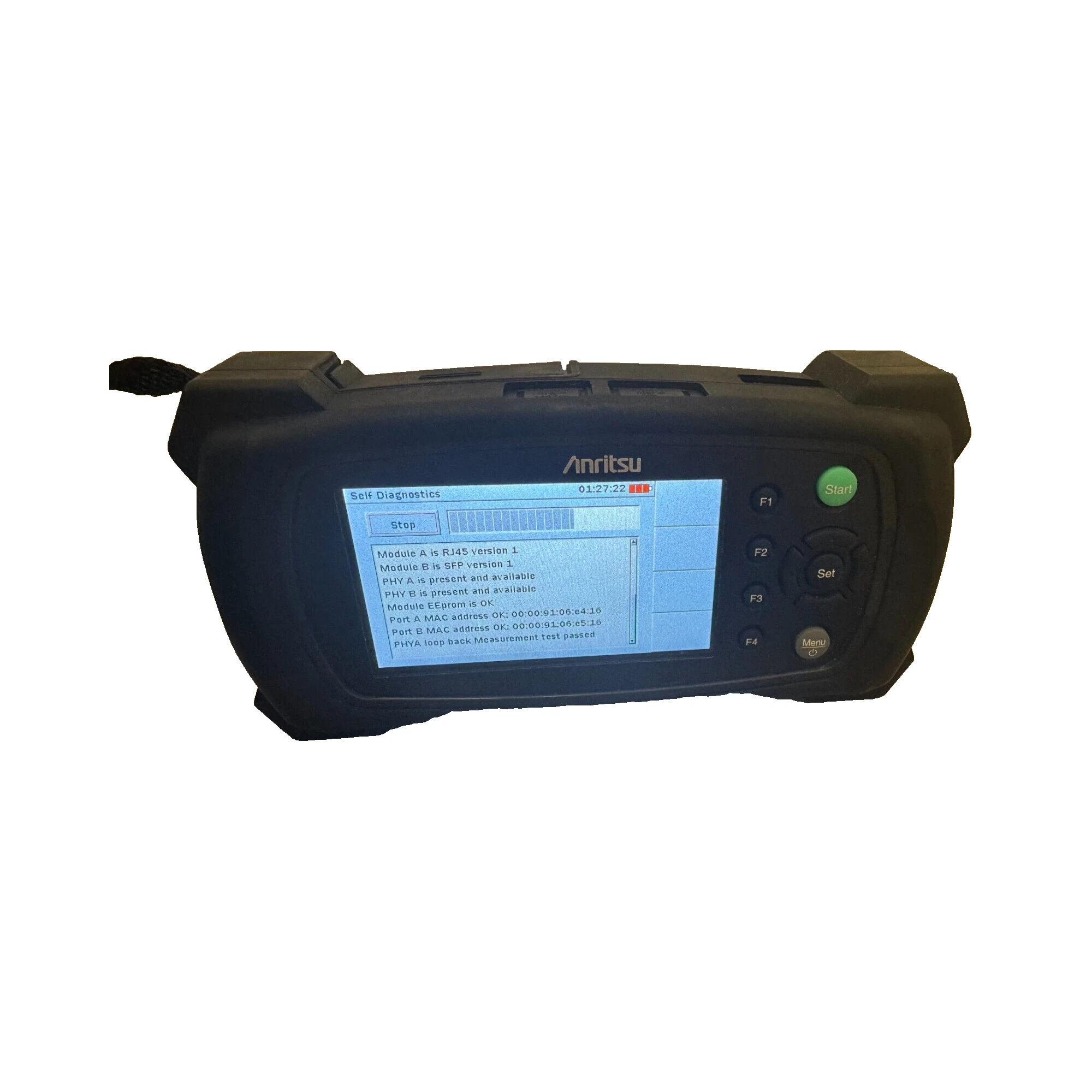

This unit is graded B — Good. It presents in very good physical condition with minimal cosmetic signs of use. It was fully tested and confirmed operational across all active functions and option sets prior to listing. No structural damage or electronic faults were identified during inspection. The battery has been replaced with a new unit prior to sale. Buyers are advised to review the provided photographs to assess the cosmetic condition prior to purchase.
Included in the Box
- Anritsu MT9090A Network Master with MT909060A1 Gigabit Ethernet module
- AC power adapter / charger
- Rechargeable battery pack (new)
- Connection cables
- Protective silicone case
- Carrying bag
- User manual / documentation
Shipping & Returns
Free worldwide shipping.
Estimated total delivery: 4–12 business days. A 30-day return policy applies: if the item is not as described, OMIWAA will issue a full refund. Full return terms are available at omiwaa.com/refund-policy/ .
Why Buy From Omiwaa
OMIWAA physically receives, inspects, grades, photographs, and documents every unit before it is listed for sale. This Anritsu MT9090A was handled directly by OMIWAA — it was not sourced through a broker, listed on consignment, or drop-shipped from a third party. OMIWAA owns and ships every item in its inventory, and condition grading is based on direct physical assessment, not seller-reported information.
Common Use Cases
The Anritsu MT9090A Network Master with Gigabit Ethernet module is used across a range of professional telecom and network deployment applications requiring portable, standards-compliant Ethernet testing.
- Ethernet service activation and turn-up testing using Y.1564 for business and carrier-grade service delivery
- RFC 2544 benchmarking for throughput, latency, and frame loss characterization on access and metro networks
- Field troubleshooting and BER testing on Gigabit Ethernet links during network maintenance or fault investigation
- Acceptance testing and SLA verification for managed Ethernet services delivered to enterprise or wholesale customers
