Description
Overview

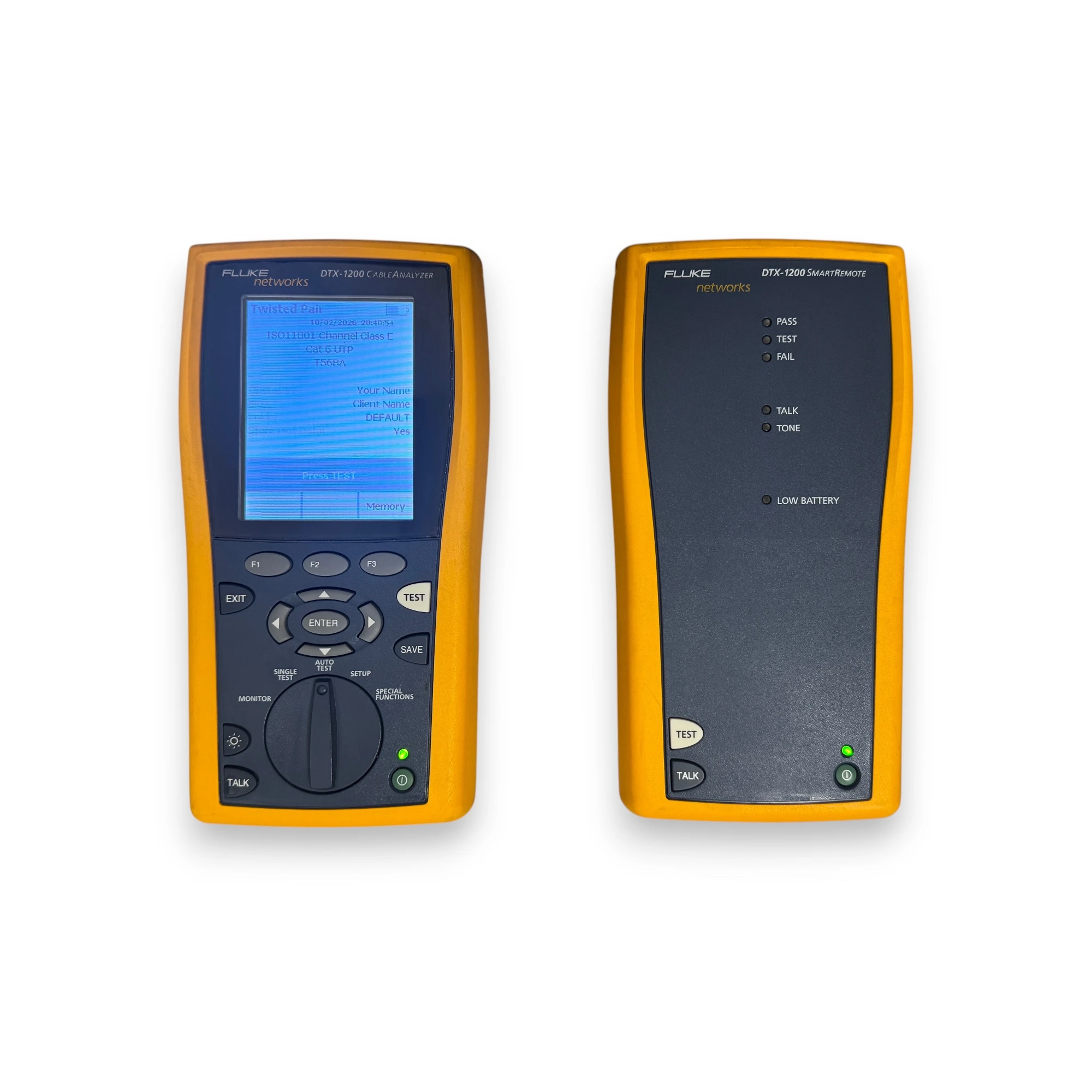

The Fluke Networks DTX-1200 Cable Analyzer is a Level IV-accuracy copper cable certification system designed for structured cabling contractors, network installers, and IT infrastructure teams who need to certify twisted-pair installations to TIA/EIA and ISO/IEC standards. The kit includes both the DTX-1200 main unit and the DTX Smart Remote, supporting certification of Cat. 5E and Cat. 6 cabling with a 12-second test cycle per link and compatibility with Cat. 6A and Class EA workflows. This Grade C unit from OMIWAA provides access to a functional dual-unit DTX-1200 kit at a substantially lower cost than new, suited for contractors adding field certification capacity or sourcing a secondary system for multi-site deployment.
Technical Specifications
The following specifications are based on the Fluke Networks DTX-1200 manufacturer documentation and official product information.
Fluke Networks DTX-1200 Specifications
- Accuracy level: Level IV (IEC 61935)
- Frequency range: Up to 900 MHz
- Supported standards: TIA/EIA Cat. 5E, 6 — ISO/IEC Class D, E — forward-compatible with Cat. 6A / Class EA and 10 Gigabit Ethernet
- Certification time: 12 seconds per link (Cat. 6)
- Measurements: Wiremap, length, insertion loss, NEXT, PS NEXT, ACR-N, PS ACR-N, ACR-F, PS ACR-F, return loss, propagation delay, delay skew, DC resistance
- Advanced diagnostics: Fault location with corrective action suggestions
- Fiber option: Compatible with DTX fiber modules (singlemode and multimode) — modules not included in this listing
- Software: Fluke Networks LinkWare — report generation, result management, configuration
- Display: Color LCD with menu interface
- Battery life: 12 hours continuous operation
- Form factor: Handheld, field-ruggedized dual-unit kit
Key Performance Parameters
- Level IV accuracy per IEC 61935 — the highest accuracy class for copper cable certification at time of product release
- 12-second certification cycle per Cat. 6 link for high-throughput field testing across large-scale cabling installations
- Full TIA/EIA and ISO/IEC measurement suite including NEXT, PS NEXT, ACR-N, ACR-F, PS ACR-F, return loss, propagation delay, and delay skew
- Forward compatibility with Cat. 6A / Class EA and 10 Gigabit Ethernet standards for installations requiring future-proof documentation
Condition Report

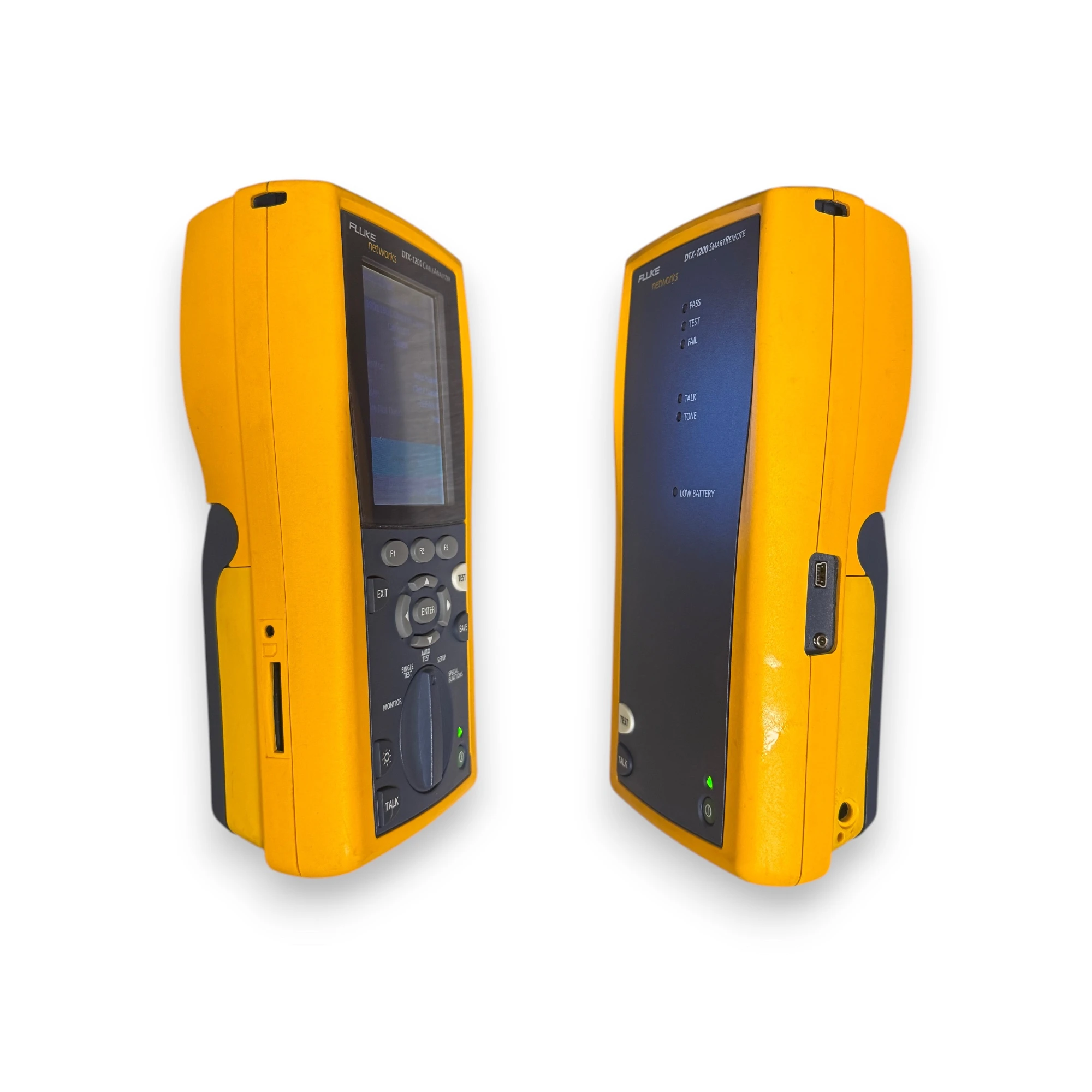

This unit is graded C — Fair. Both the DTX-1200 main unit and the DTX Smart Remote power on and operate normally across all documented test functions. Cosmetic wear is present on both units, consistent with regular professional field deployment. Calibration status is not specified — recalibration should be considered prior to use in formal certification workflows where traceable accuracy is required. No electronic faults were observed during functional testing. Buyers are advised to review the provided photographs to assess the cosmetic condition of both units before purchase.

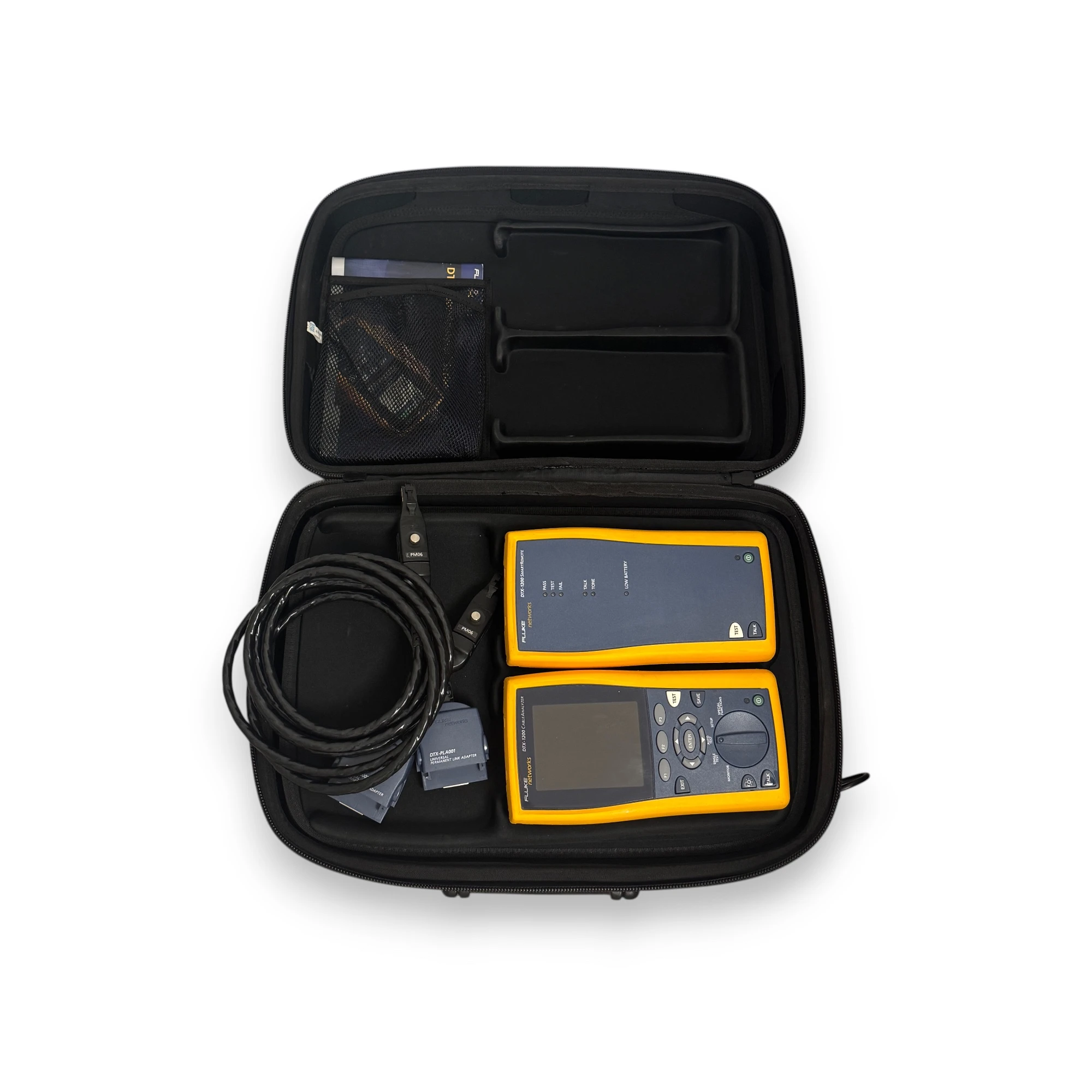

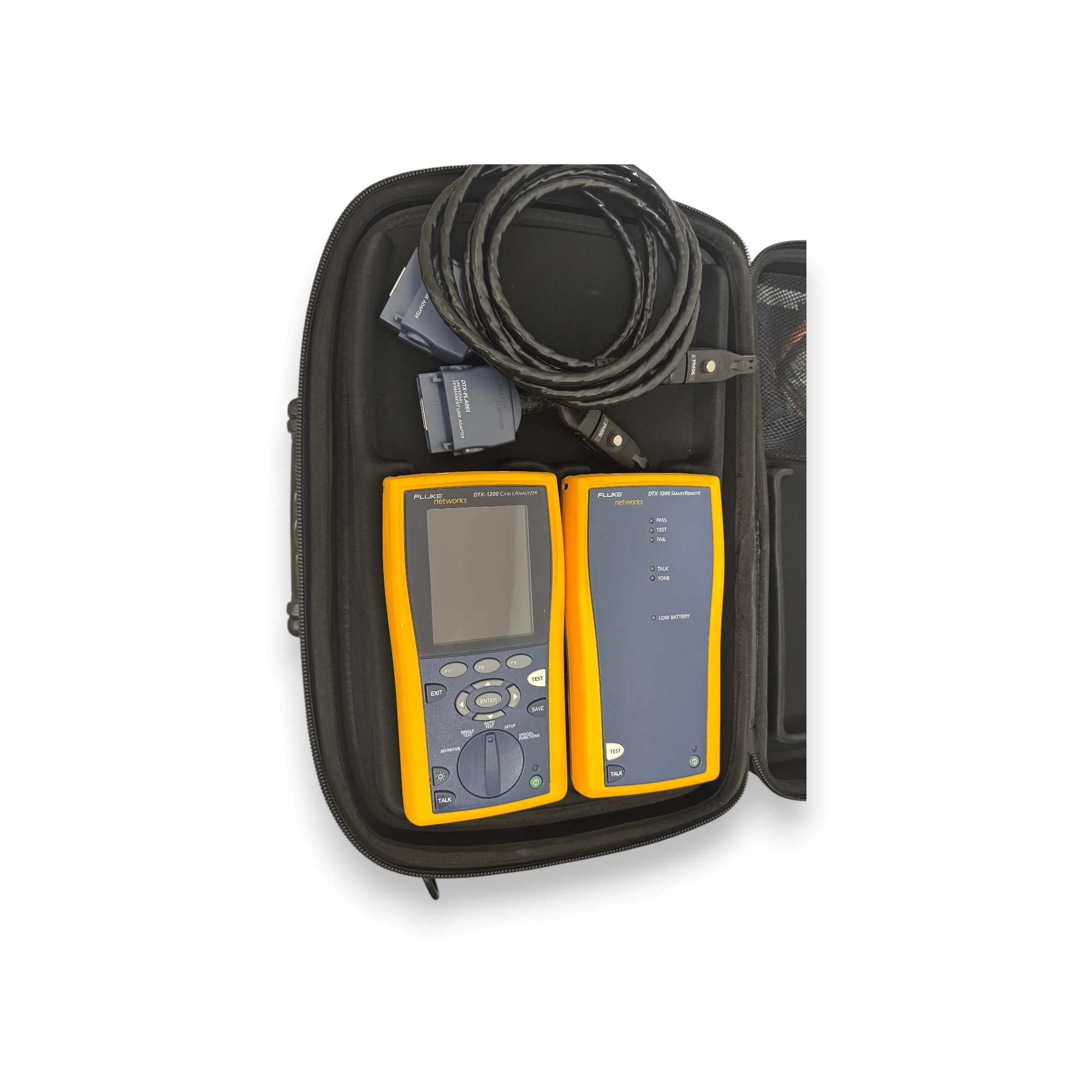

Included in the Box

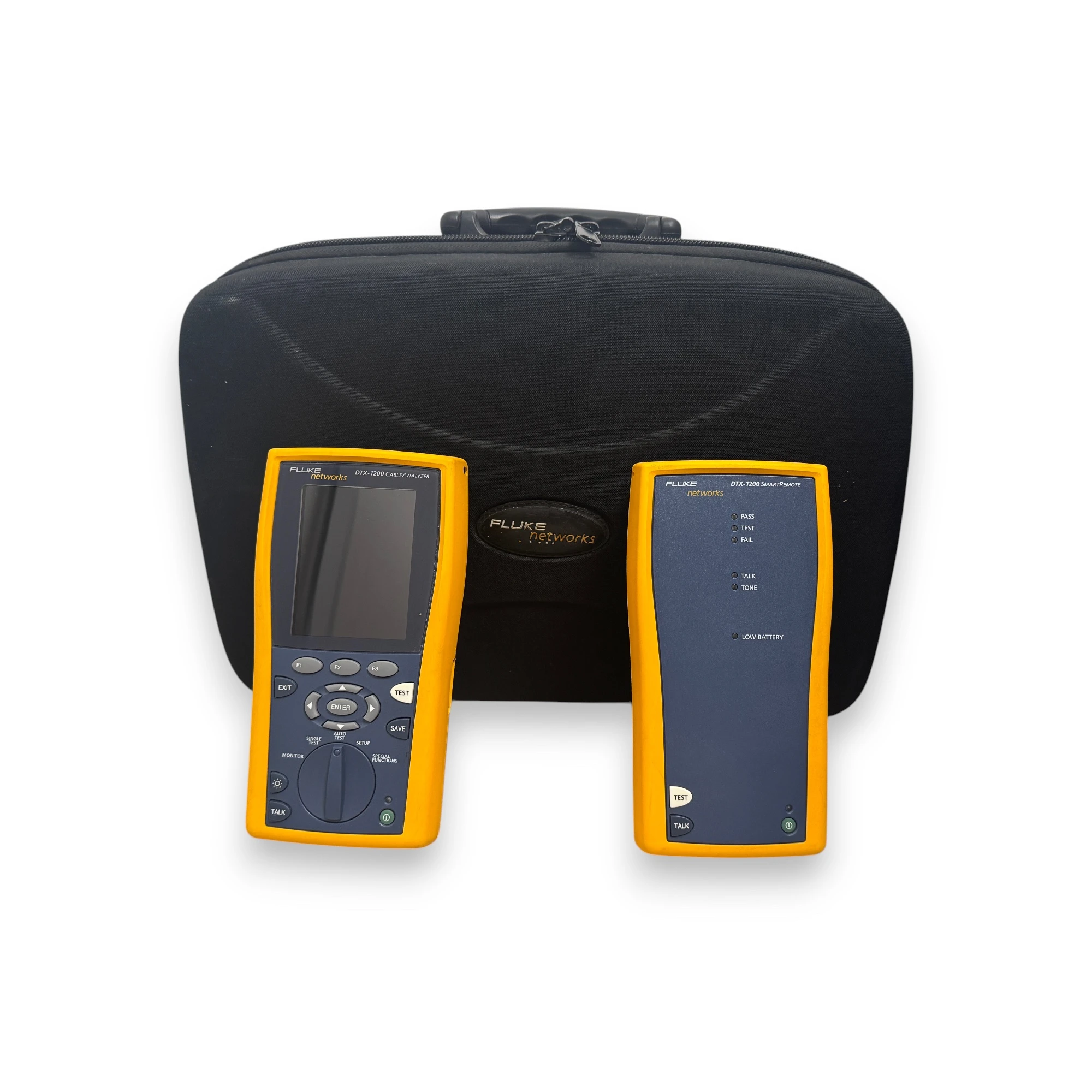

- Fluke Networks DTX-1200 main unit
- DTX Smart Remote
- Hard carrying case

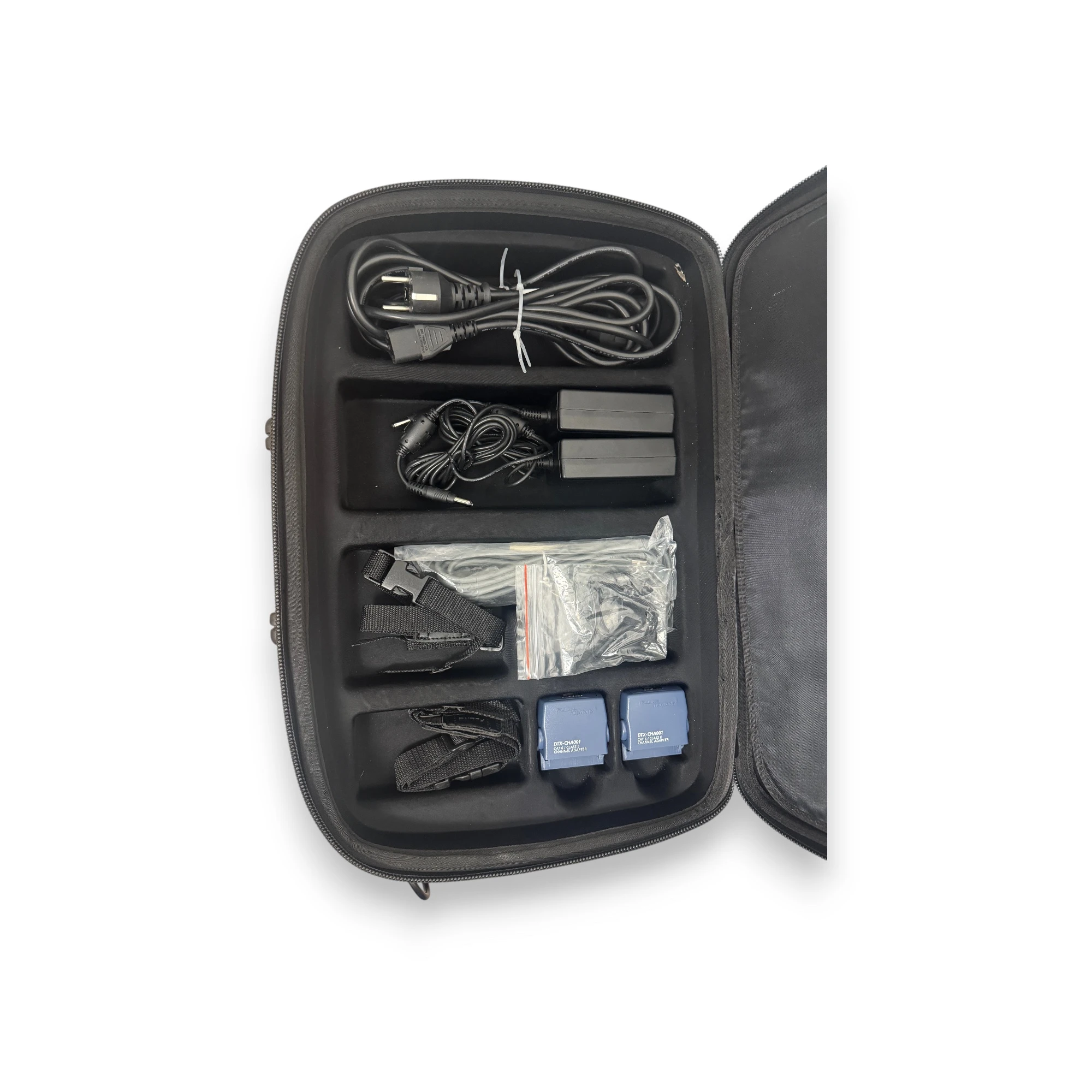

- AC power adapter / charger
- Rechargeable battery pack
- Connection cables
- User manual / documentation
Shipping & Returns
Free worldwide shipping.
Estimated total delivery: 4–12 business days. A 30-day return policy applies: if the item is not as described, OMIWAA will issue a full refund. Full return terms are available at omiwaa.com/refund-policy/ .
Why Buy From Omiwaa
OMIWAA physically receives, inspects, grades, photographs, and documents every unit before it is listed for sale. This Fluke Networks DTX-1200 kit was handled directly by OMIWAA — it was not sourced through a broker, listed on consignment, or drop-shipped from a third party. OMIWAA owns and ships every item in its inventory, and condition grading is based on direct physical assessment, not seller-reported information.
Common Use Cases
The Fluke Networks DTX-1200 CableAnalyzer is used across a range of professional structured cabling and network infrastructure applications requiring standards-compliant copper cable certification and documentation.
- Certification of Cat. 5E and Cat. 6 horizontal cabling in commercial, enterprise, and data center environments to TIA/EIA and ISO/IEC standards
- Post-installation test reporting for structured cabling contractors delivering LinkWare-generated documentation to end clients or building owners
- Troubleshooting of copper link performance issues including crosstalk margins, return loss anomalies, and propagation delay skew
- Secondary or backup certification kit for cabling teams operating across multiple active job sites requiring parallel test capacity
