Description
Overview
The Fujikura 70S+ is a core alignment fusion splicer designed for field splicing operations in FTTx construction, outside plant deployment, and backbone fiber installation. It is suited for fiber contractors, OSP technicians, and telecom operators who require a compact, capable splicer with fast splice cycles and active core alignment. This Grade C unit from OMIWAA provides access to a fully functional Fujikura 70S+ at a significantly lower acquisition cost than a new unit, making it a practical option for teams adding capacity or replacing aging equipment without the capital outlay of new hardware.
Technical Specifications
The following specifications are based on the Fujikura 70S+ manufacturer datasheet and official product documentation.
Fujikura 70S+ Specifications
- Alignment method: Core alignment (active)
- Splice time (Ultra Fast mode): 6 seconds
- Splice time (Auto / G.657 mode): 10 seconds
- Average splice loss — Singlemode SM G.652 / G.657: 0.02 dB
- Average splice loss — Multimode MM G.651: 0.01 dB
- Heat shrink time (Fast mode, Slim 60 mm sleeve): 9 seconds
- Heat shrink time (Normal mode, FP-03 250 µm sleeve): 13 seconds
- Display: 4.73-inch reinforced LCD touchscreen
- Microscope magnification: Up to ×320
- Viewing direction: Dual-axis (X and Y)
- Battery: BTR-09 rechargeable Li-ion pack
- Battery autonomy: Up to 200 splice cycles per charge
- Electrode life: Up to 5,000 arc discharges per set
- Fiber types supported: SM, MM, DS, NZDS, EDF (standard Fujikura program library)
- Bluetooth: Yes
- Integrated training videos: Yes
- Weight (with battery): 2.7 kg
- Ingress protection: Dust and splash resistant (field-grade enclosure)
Key Performance Parameters
- Core alignment (active): average splice loss of 0.02 dB on G.652/G.657 singlemode fiber
- Splice cycle speed: 6 seconds in Ultra Fast mode, 10 seconds in Auto/G.657 mode
- Heat shrink cycle: 9 seconds in Fast mode (Slim 60 mm sleeve)
- Battery autonomy: up to 200 splice cycles per charge on the BTR-09 Li-ion pack
Condition Report

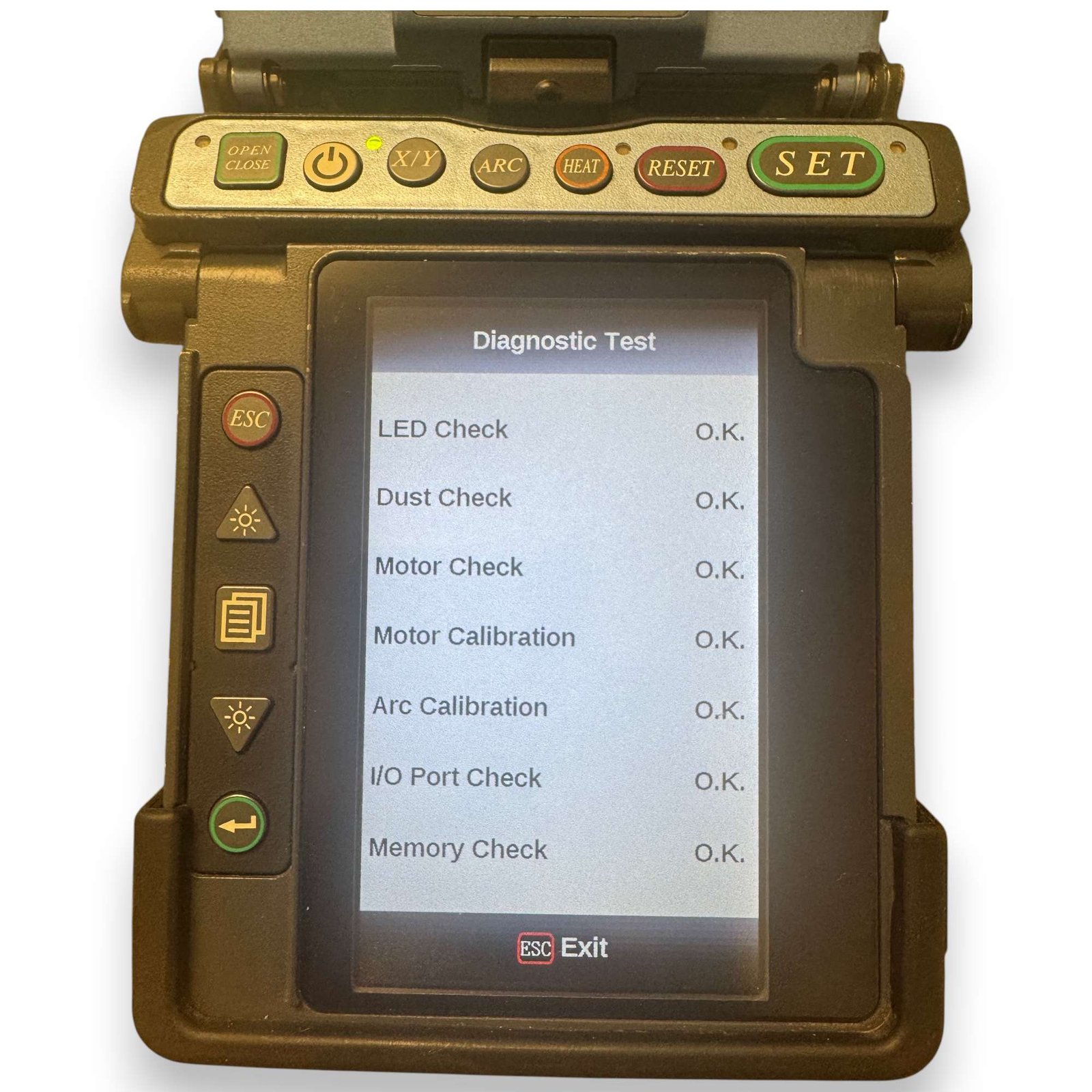

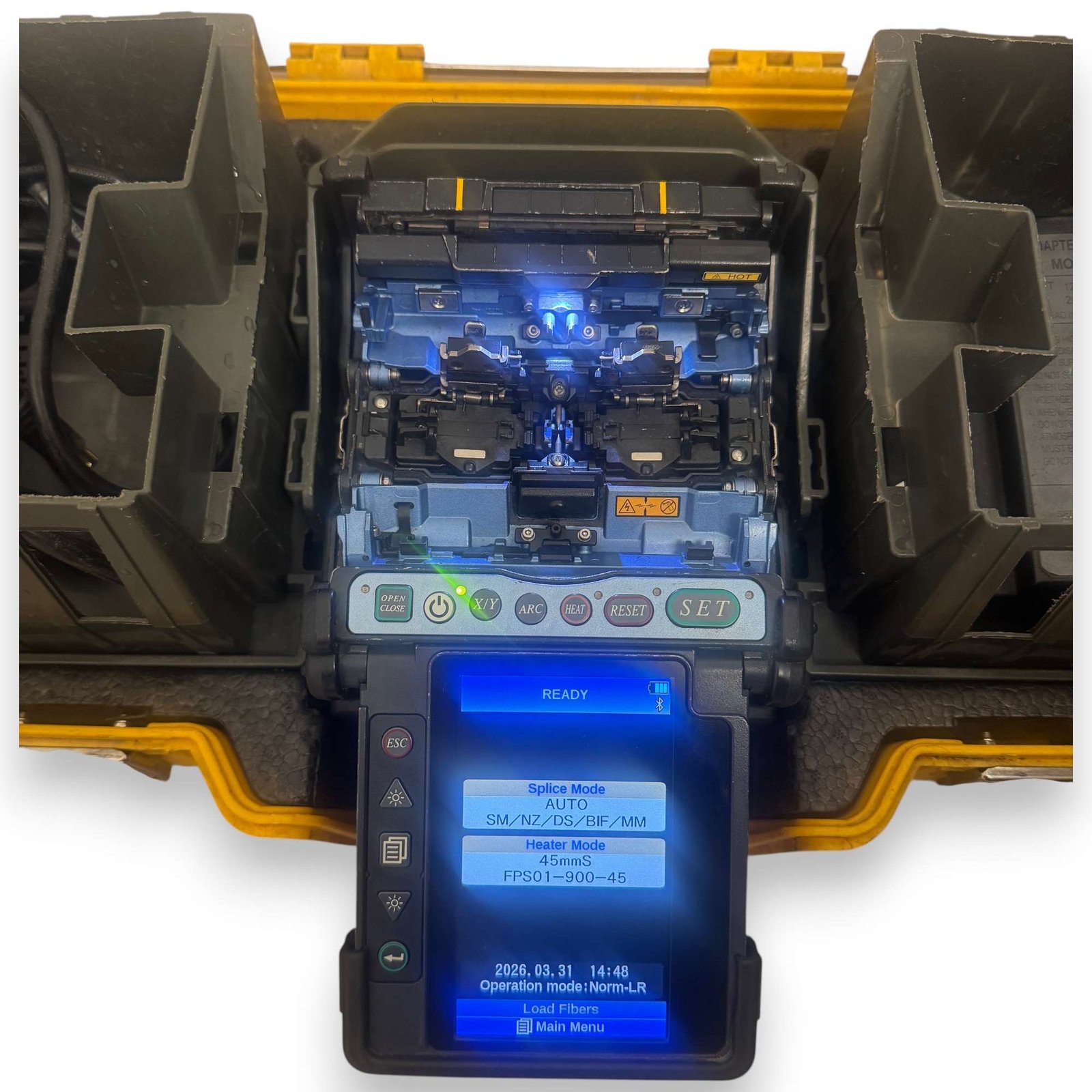

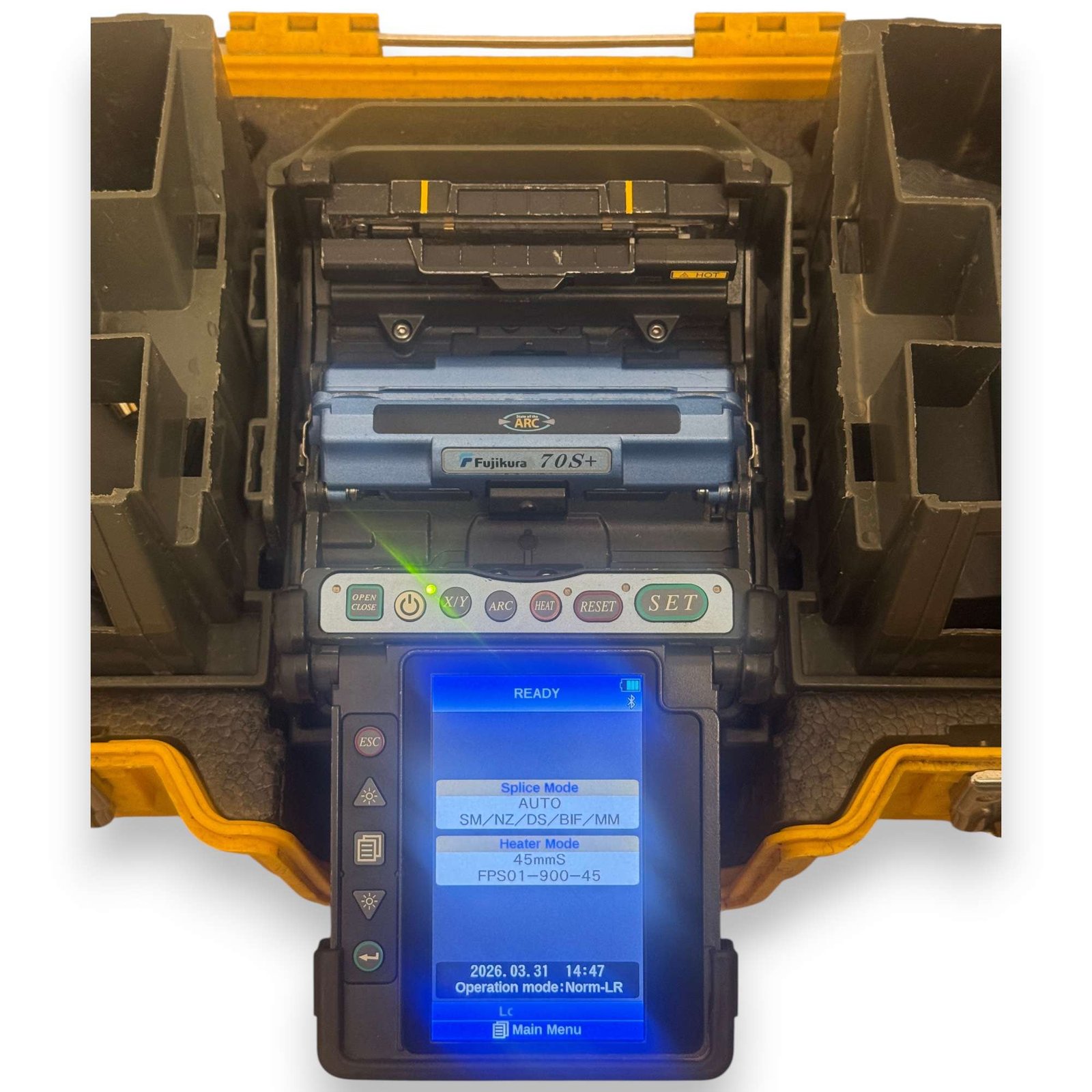

This unit is graded C — Fair. It is fully functional and was verified to perform splice and heat shrink cycles within expected operational parameters prior to listing. The unit presents visible cosmetic wear on the housing, display surround, and fiber holders consistent with regular field use. The arc counter reads 12,400 arcs. Electrode life is rated at up to 5,000 arc discharges per set, indicating the electrodes have been replaced at least twice during the unit’s service history. Prospective buyers are encouraged to review the provided photographs to assess the cosmetic condition before purchase. No operational issues were observed during inspection.

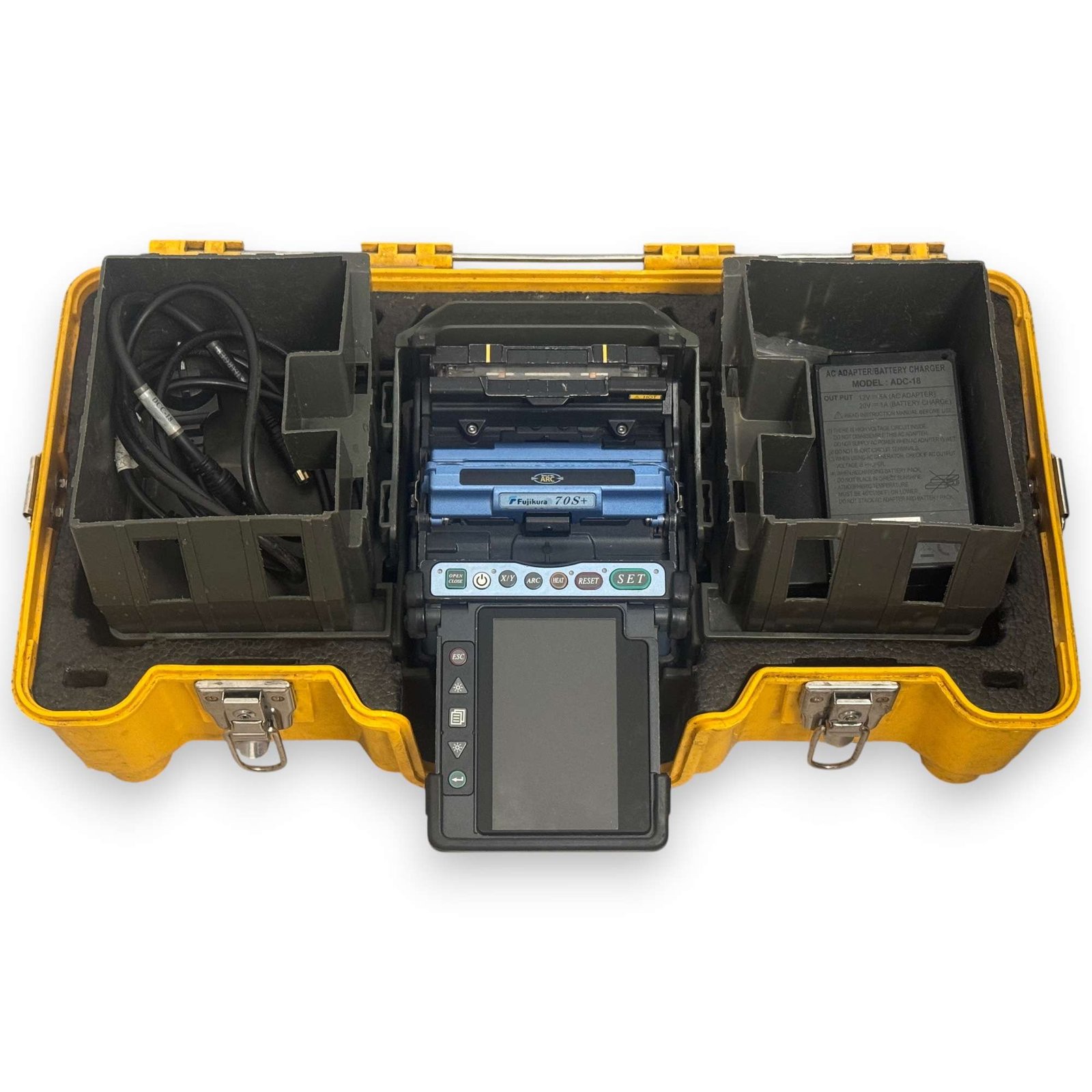

Included in the Box
- Fujikura 70S+ core alignment fusion splicer
- Hard carrying case
- AC power adapter / charger
- Rechargeable battery pack (BTR-09)
- Connection cables
Shipping & Returns
Free worldwide shipping.
Estimated total delivery: 4–12 business days. A 30-day return policy applies: if the item is not as described, OMIWAA will issue a full refund. Full return terms are available at omiwaa.com/refund-policy/ .
Why Buy From Omiwaa
OMIWAA physically receives, inspects, grades, photographs, and documents every unit before it is listed for sale. This Fujikura 70S+ was handled directly by OMIWAA — it was not sourced through a broker, listed on consignment, or drop-shipped from a third party. OMIWAA owns and ships every item in its inventory, and condition grading is based on direct physical assessment, not seller-reported information.
Common Use Cases
The Fujikura 70S+ is used across a range of professional fiber optic applications where core alignment precision and field-ready speed are required.
- FTTx construction and last-mile fiber deployment requiring consistent low-loss splices at volume
- Outside plant (OSP) splicing in aerial, buried, and duct environments
- Backbone and feeder fiber splicing for telecom operators and network integrators
- Fiber restoration and emergency repair where fast splice cycles reduce network downtime
