Used IDEAL LanTEK II-350 Cable Certifier — Cat 6A, 18h Battery, Tested

Overview

The used IDEAL LanTEK II-350 Cable Certifier paired with the LanTEK II-1000 remote unit is a professional copper certification system supporting frequencies up to 350 MHz, designed for network installers and infrastructure contractors requiring TIA and ISO/IEC-compliant certification of structured cabling installations up to Category 6A / Class EA. This kit covers the full range of copper certification tests including wiremap, insertion loss, NEXT, return loss, and alien crosstalk across 16 supported languages. At $799 against a reference price of $1,164, it provides a cost-effective entry into IDEAL’s LanTEK II platform for teams needing proven field certification capability.

Technical Specifications

• Frequency range: Main unit (LanTEK II-350): 1–350 MHz / Remote unit (LanTEK II-1000): 1–1,000 MHz
• Supported standards: TIA/EIA Cat. 3, 4, 5, 5E, 6, 6A (100Ω) — ISO/IEC Class C, D, E, EA, F, FA (100Ω)
• Display: 4.3″ color TFT, 480 × 272 px
• Memory: 1,700 tests (ISO Class E / TIA Cat. 6 with graphs) — USB export up to 64 GB
• Measurements: Wiremap, DC resistance, length, capacitance, NEXT, insertion loss, ACR-N, ACR-F, return loss, PS NEXT, PS ACR-N, PS ACR-F, impedance, propagation delay & skew
• Alien crosstalk: Supported via optional AXT 10 Gbit kit
• Length measurement: 0–605 m — accuracy ±3% (±1 m) — resolution 0.1 m
• Battery: Li-ion 7.4V / 6.6Ah — up to 18 hours typical runtime
• Charge time: 4 hours (external) / 6 hours (in-unit)
• Power input: 12–15V DC, 2A / AC 100–240V
• Dimensions (main): 256 × 127 × 58 mm — Weight: 1.1 kg (with battery)
• Interface: 168-pin ultra-low crosstalk adapter port, mini-USB, direct USB host, 2.5 mm walkie-talkie jack
• Optional adapters: GG45, ARJ45, TERA, EC7, Coax 50–75Ω (BNC), M12 industrial
• Tone generator: Integrated in both units — 500/600 Hz selectable
• Operating temperature: 0°C to 50°C — Storage: −20°C to 70°C
• Shock/Vibration: MIL-PRF-28800F Class 3
• Accuracy certification: ETL-certified per IEC 61935 Level III/IIIe/IV
• PC software: IDEAL DataCENTER (Windows XP/Vista)
• Languages: 16 languages including EN, FR, DE, ES, IT, PT, ZH, KO, RU

Condition — Grade C

This used IDEAL LanTEK II-350 Cable Certifier powers on and functions normally across all documented test modes. Cosmetic signs of use are present on both the main and remote units, consistent with regular field deployment. Calibration status is unknown — recalibration may be required prior to formal certification use and should be factored into the purchase decision.

Common Use Cases

The used IDEAL LanTEK II-350 Cable Certifier is well suited for the following professional deployment scenarios:

• Certification of Cat. 5E and Cat. 6 structured cabling in commercial and enterprise buildings
• Cat. 6A / Class EA acceptance testing on high-density data center horizontal cabling
• Backup certification unit for contractors requiring a secondary platform on large-scale projects
• ISO/IEC Class F and FA testing on shielded cabling installations in industrial environments
• Training and skills development for junior technicians on a proven certification platform

Compatible Accessories

The used IDEAL LanTEK II-350 Cable Certifier is compatible with IDEAL’s full range of LanTEK II adapter modules including GG45, ARJ45, TERA, EC7, coaxial BNC, and M12 industrial connectors — allowing the platform to cover virtually all structured cabling media types. The optional AXT 10 Gbit alien crosstalk kit extends testing capability to augmented Category 6A installations. Results export via USB to IDEAL DataCENTER PC software for report generation and project management.

What’s Included

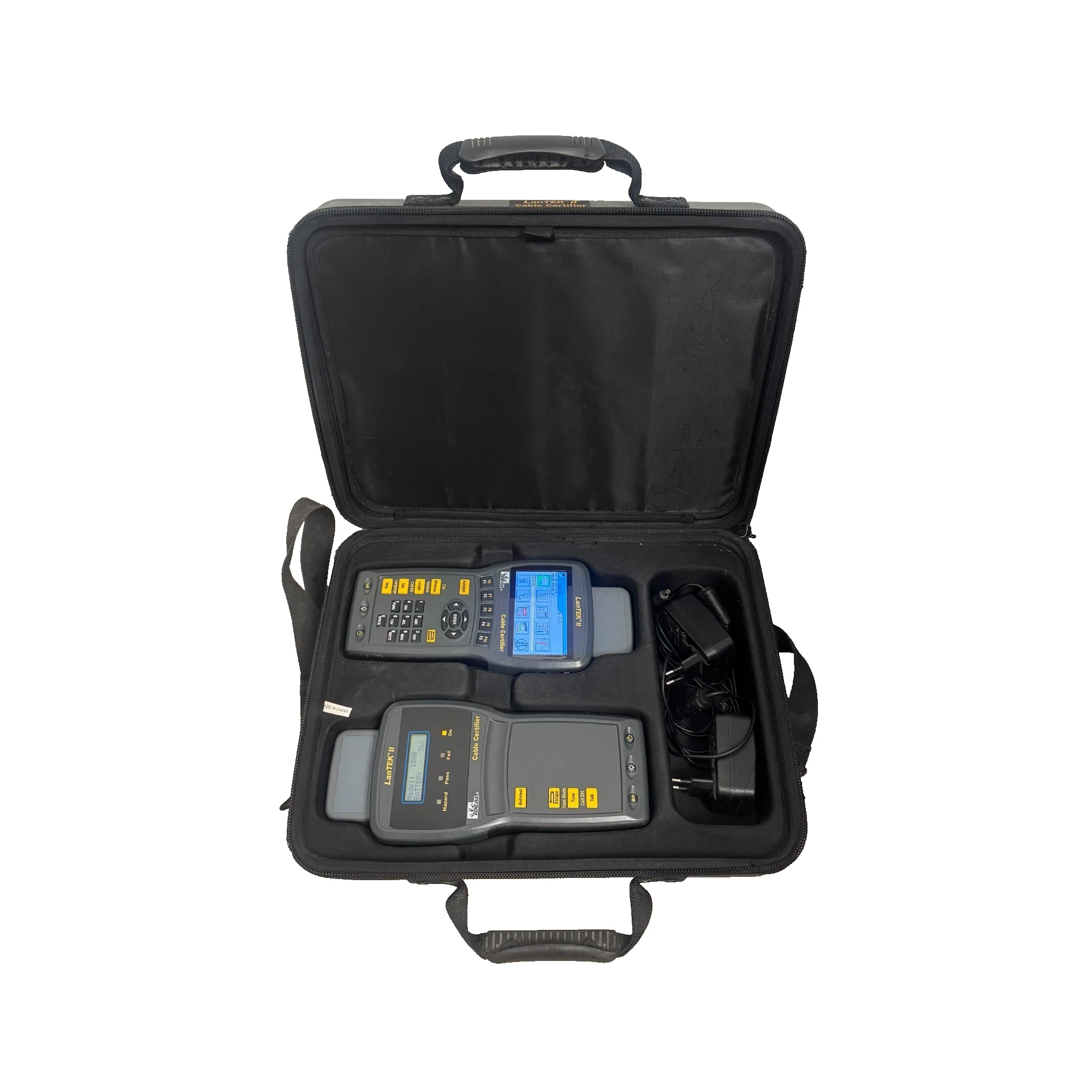

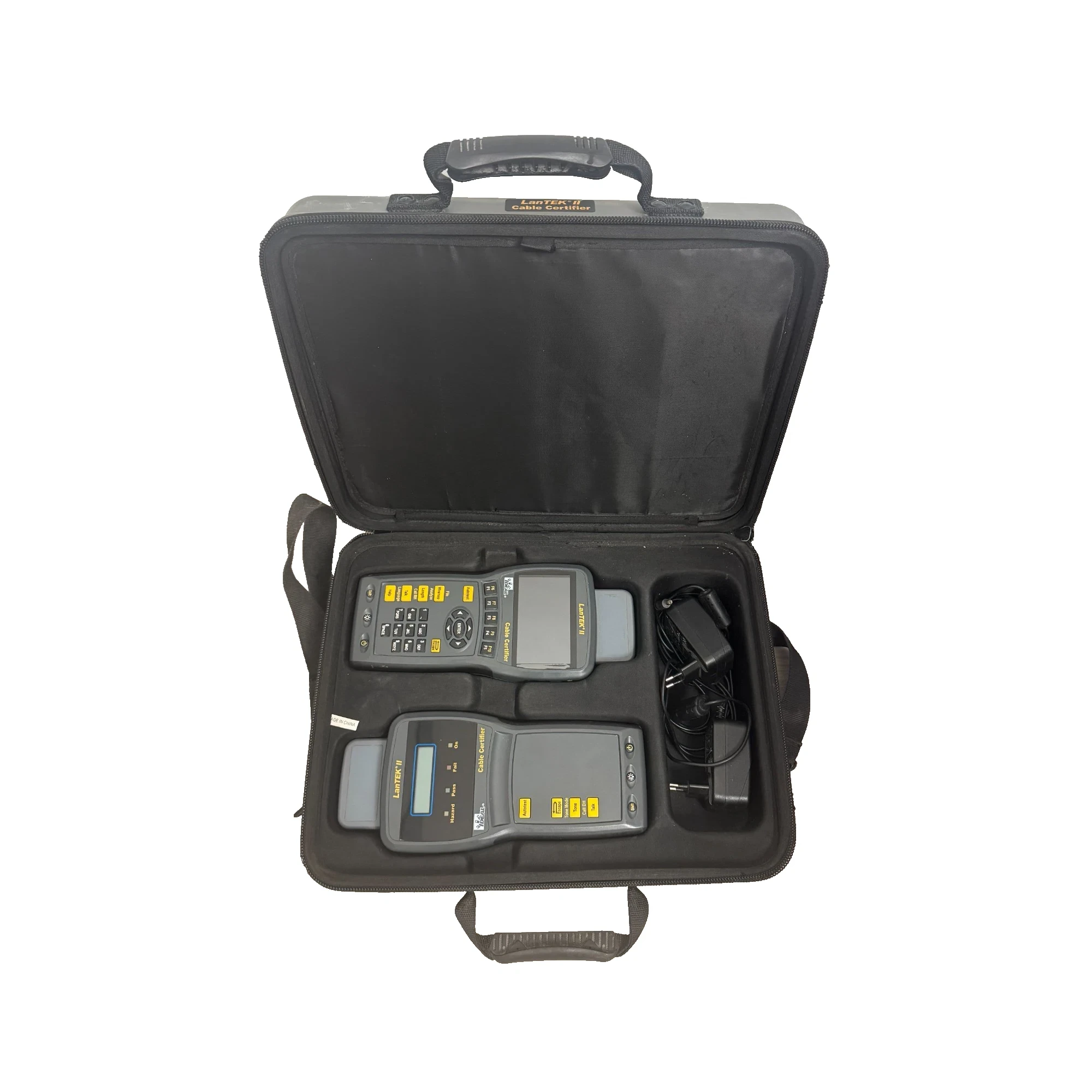

• IDEAL LanTEK II-350 main certification unit
• IDEAL LanTEK II-1000 remote unit

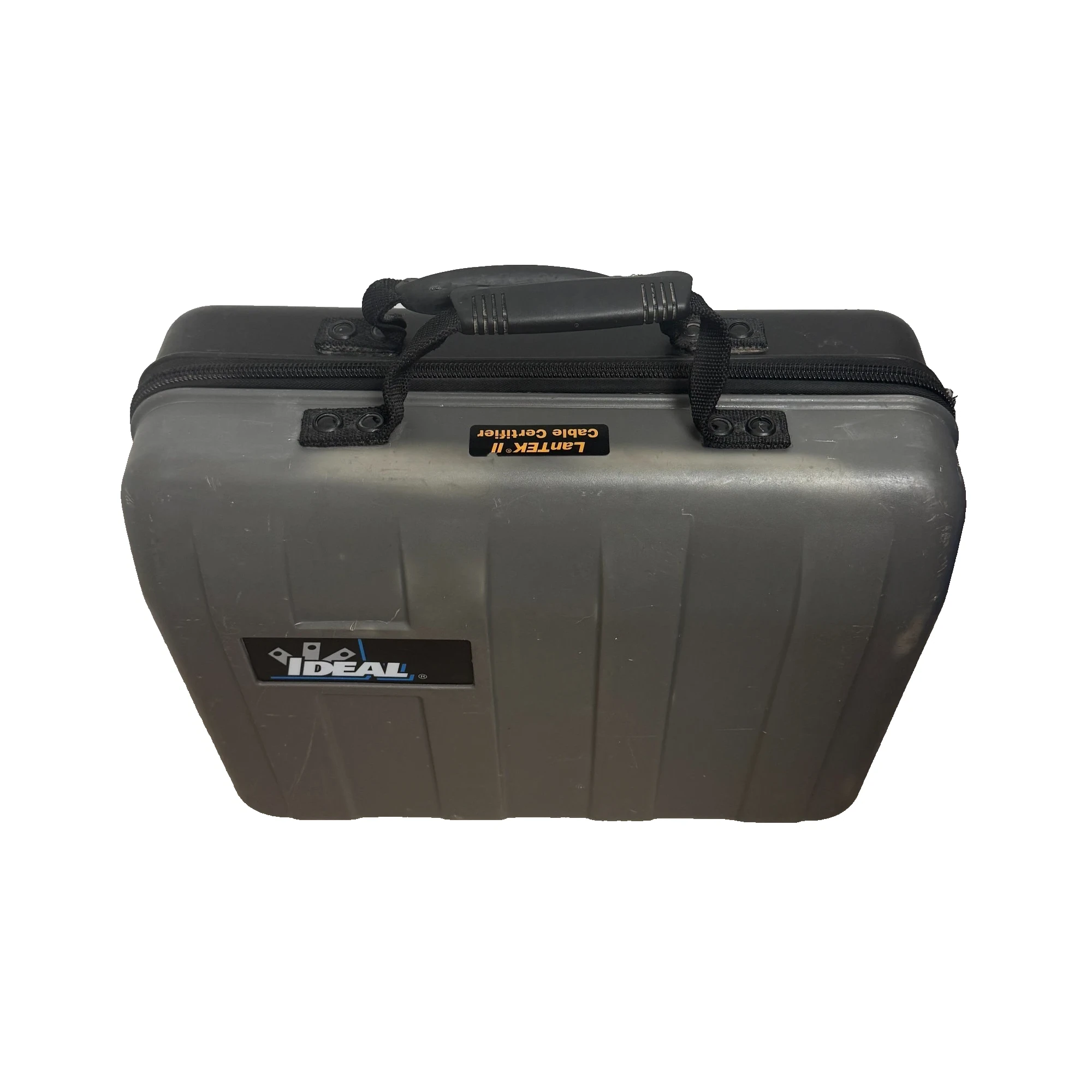

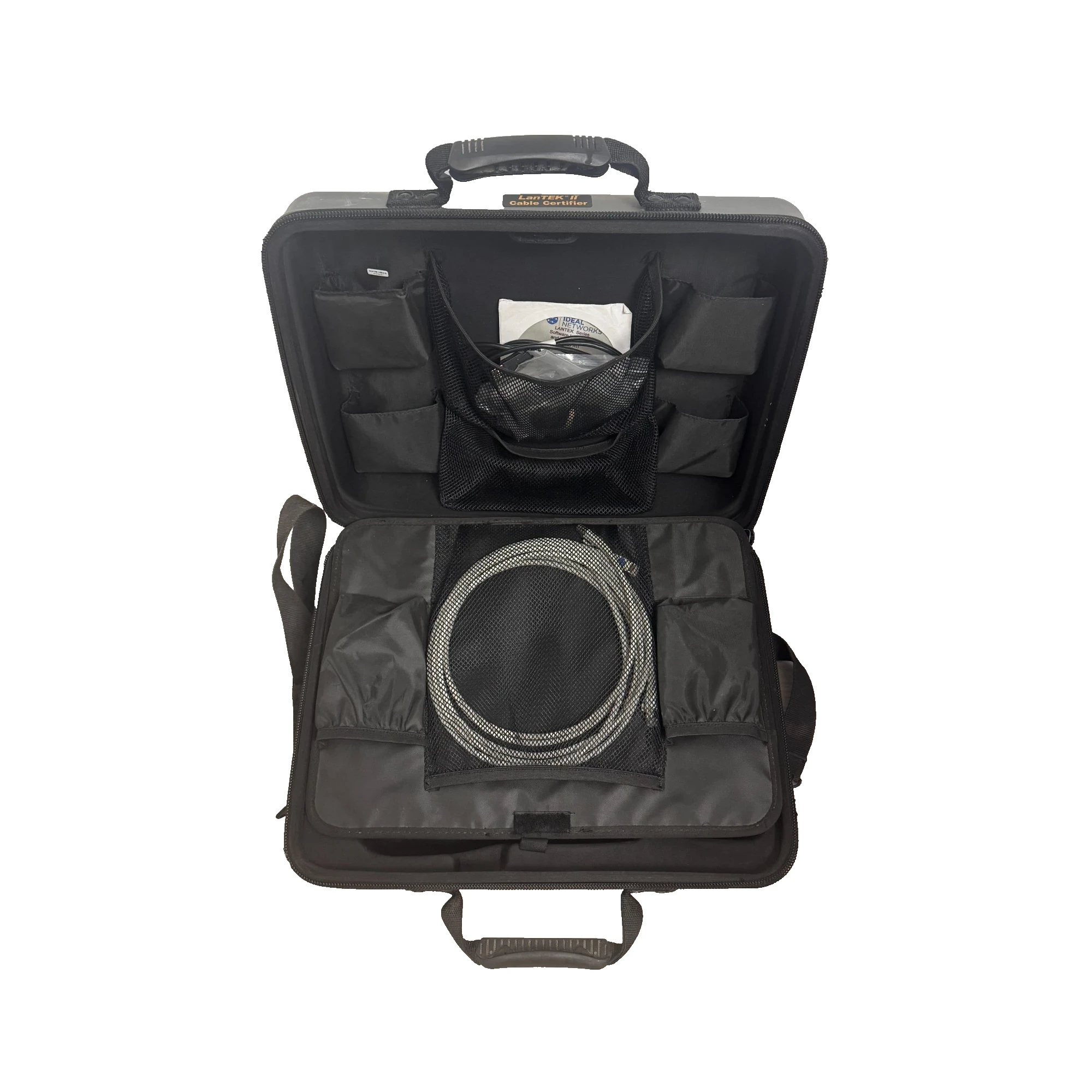

• Hard carrying case
• AC power adapter / charger
• Rechargeable battery pack
• Connection cables
• User manual / documentation

Shipping & Warranty

This kit ships from Europe (EU) within 1 business day of confirmed payment, with worldwide delivery available — import duties and local taxes are not included in the listed price. A 30-day return policy applies, provided the item is returned complete and in the same condition as received.

Why Buy From Omiwaa

The used IDEAL LanTEK II-350 Cable Certifier listed here has been powered on and verified functional before listing, with condition and calibration status transparently disclosed so procurement teams can make informed decisions. OMIWAA LLC sources certified used equipment from verified professional origins, ensuring buyers receive accurate technical documentation prior to purchase. At $799 against a reference retail price of $1,164, this kit represents a 31% saving for installers or contractors needing a backup certification platform or a cost-effective entry into Cat. 6A field testing.
