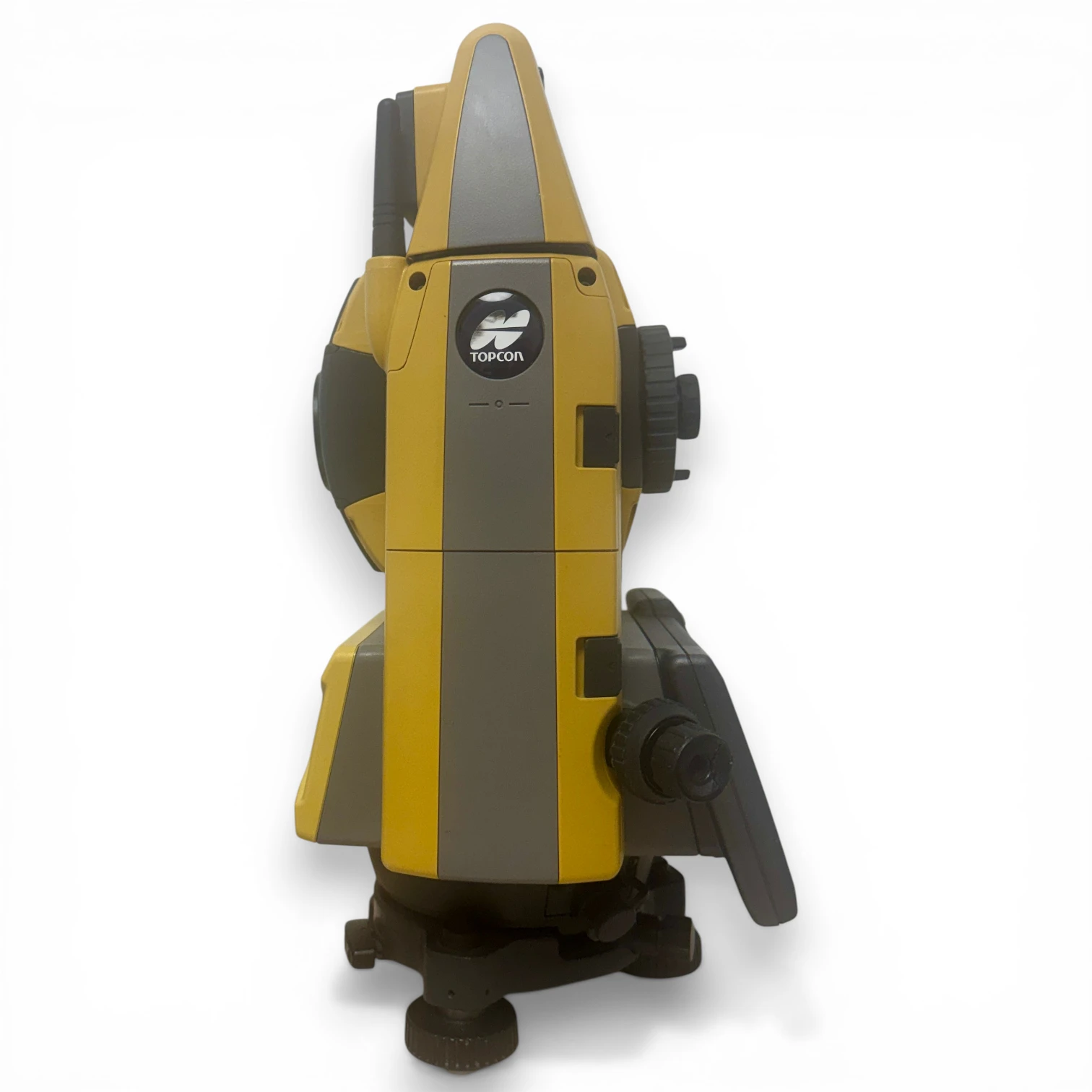

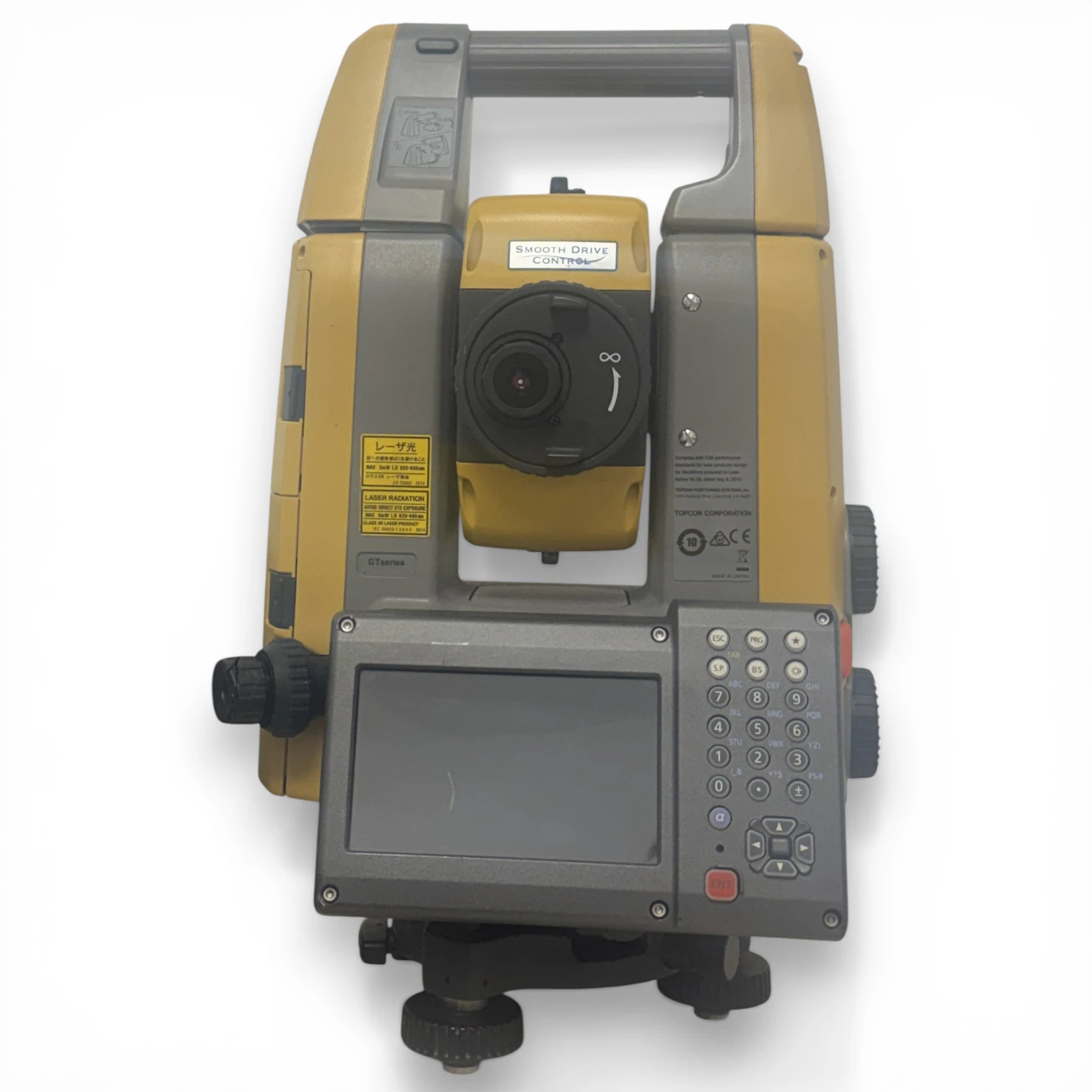

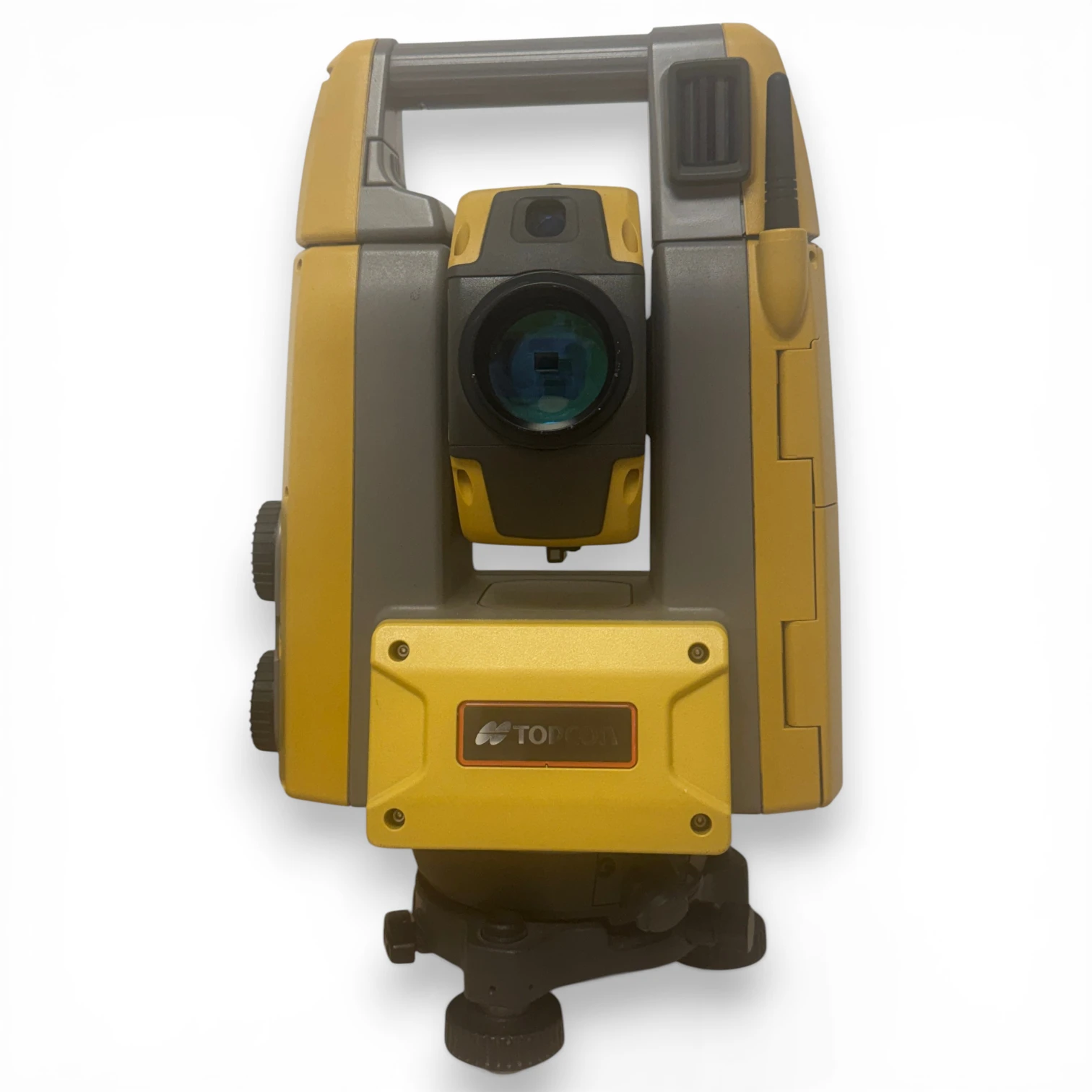

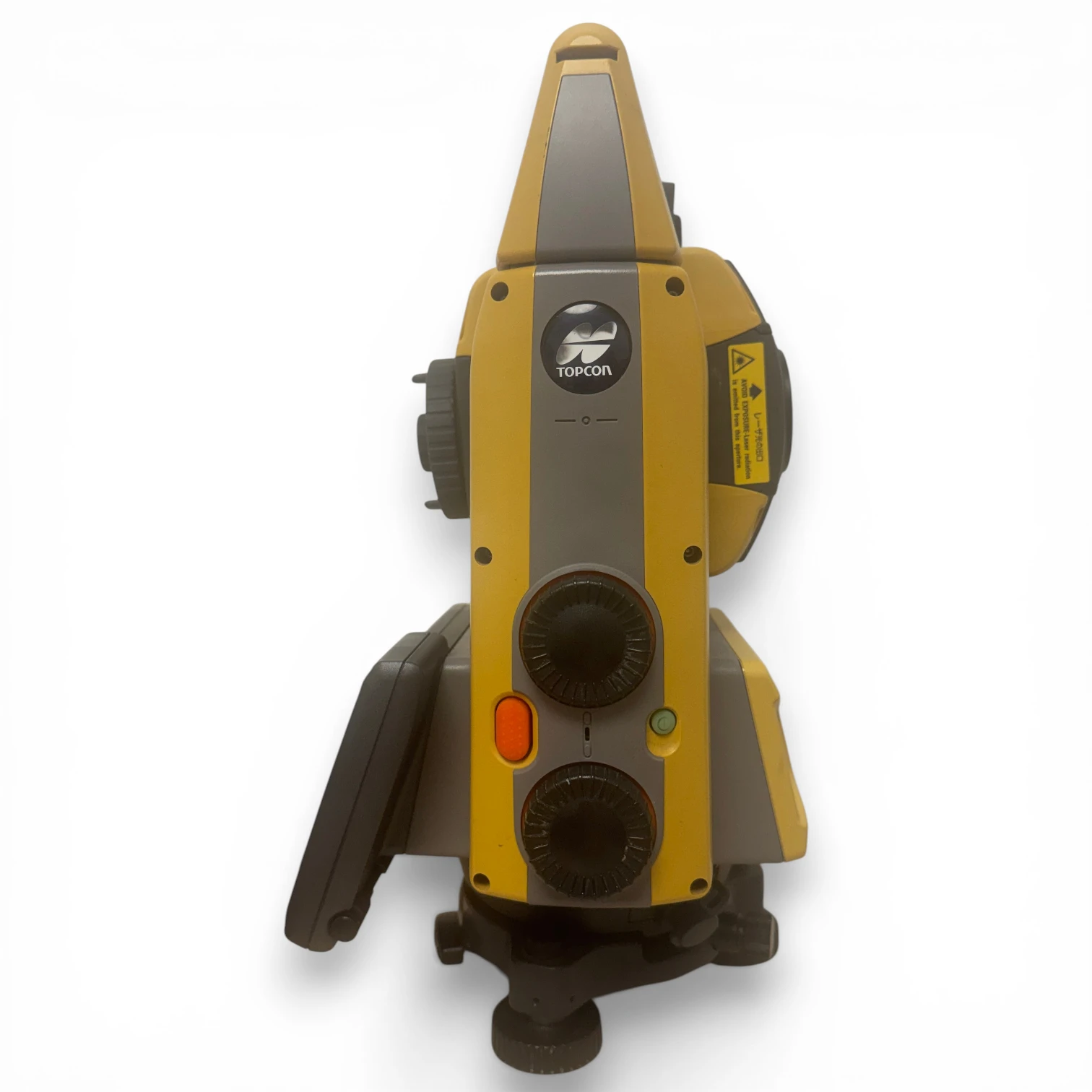

Used Topcon GT-603 Robotic Total Station — 3″ Accuracy, Calibrated 2025

Overview

The used Topcon GT-603 Robotic Total Station is a 3-second accuracy robotic instrument designed for surveying professionals requiring reflectorless measurement and full automation in the field. This unit runs Topcon’s MAGNET Field software natively and was calibrated in 2025, making it compatible with standard survey workflows for construction, infrastructure, and geomatics applications. Known defects including a screen defect and minor physical damage on one component are fully documented in the product photographs — condition is disclosed transparently to support informed procurement decisions.

Technical Specifications

• Angle accuracy: 3″ (0.0010 gon / 0.015 mil)
• Magnification: 30x
• EDM aperture: 38 mm — coaxial phase shift measuring system
• Signal source: Red laser diode 690 nm, Class 3R
• Reflectorless range: up to 500 m (typical, Kodak White)
• Prism range (ATP1): Fine 1 mm + 2 ppm / Rapid 5 mm + 2 ppm
• Display: 4.3″ color touchscreen — Transmissive TFT WVGA, 9 brightness levels, resistive touch
• Minimum display resolution: 1″ / 5″ (selectable)
• H/V circles: Rotary absolute encoder
• Measuring modes: H angle Right/Left — V angle Zenith / Horizontal / ±90° / % (all selectable)
• Guide light range: 1.3 to 150 m — visible angle ±4°
• Power: Li-ion battery BDC72
• Operating temperature: −20°C to +50°C
• Protection rating: IP65 (IEC 60529)
• Weight: 5.8 kg (with handle and battery)
• Software: MAGNET Field pre-installed
• Last calibration: 2025

Condition — Grade C

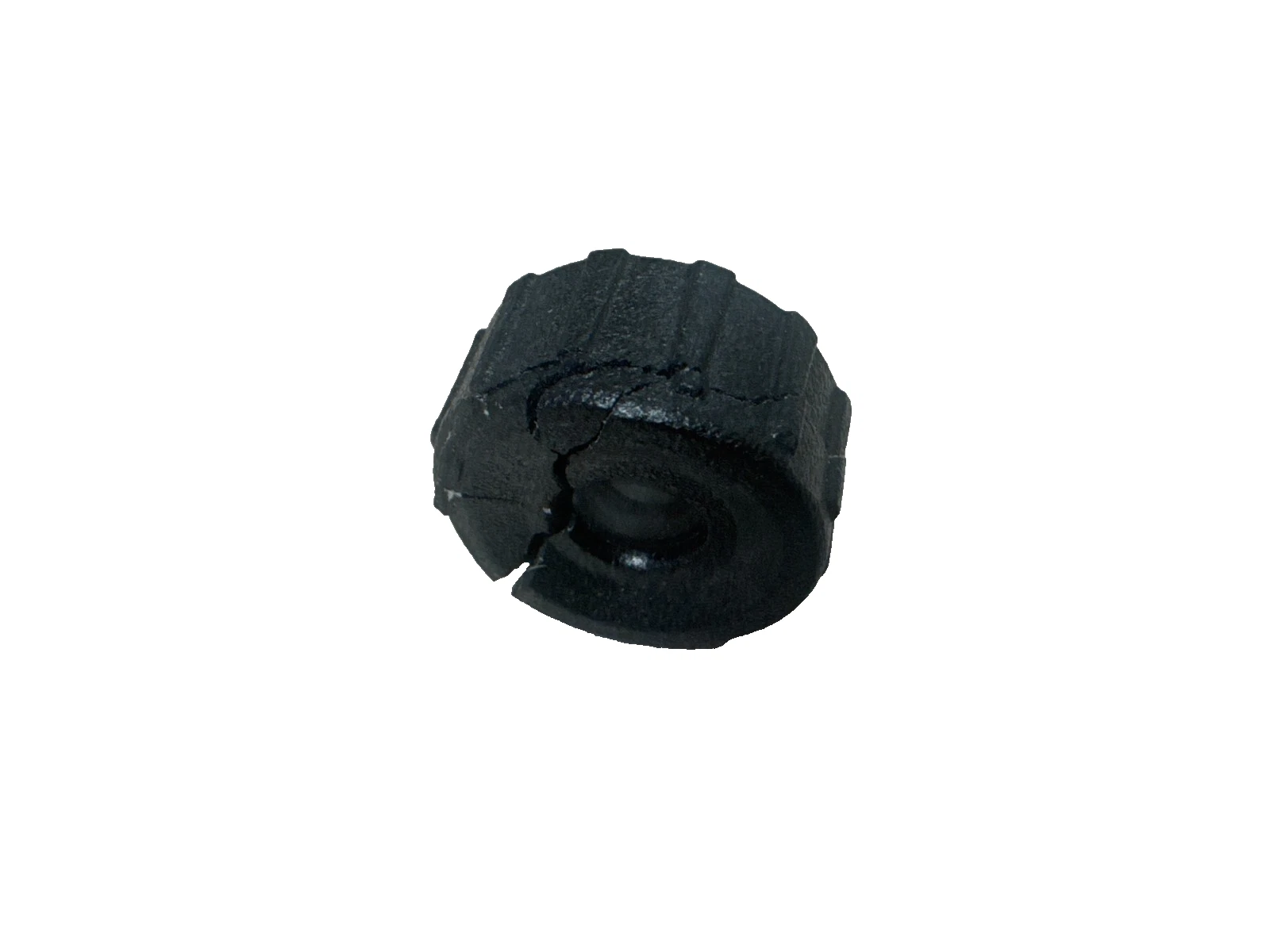

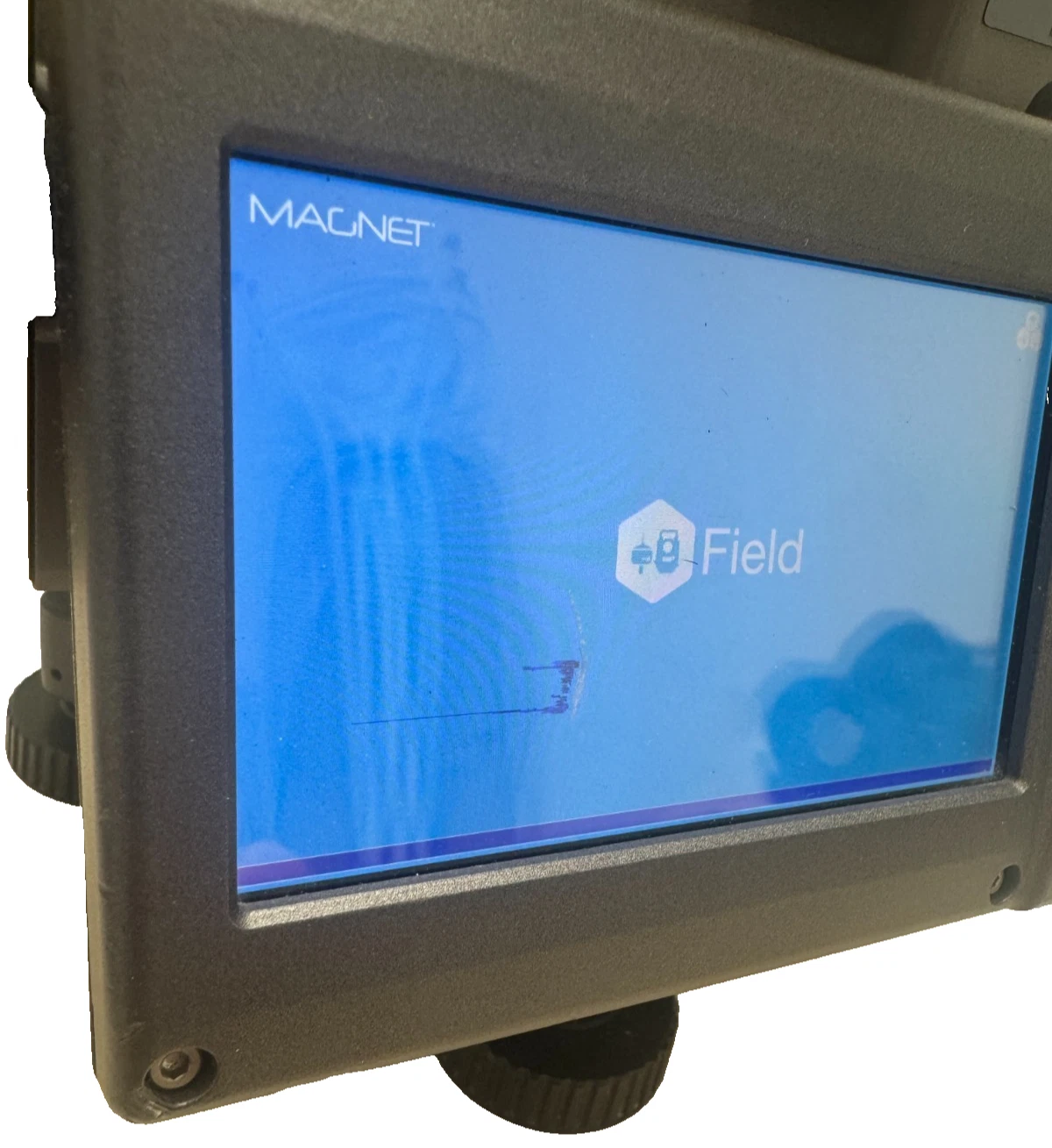

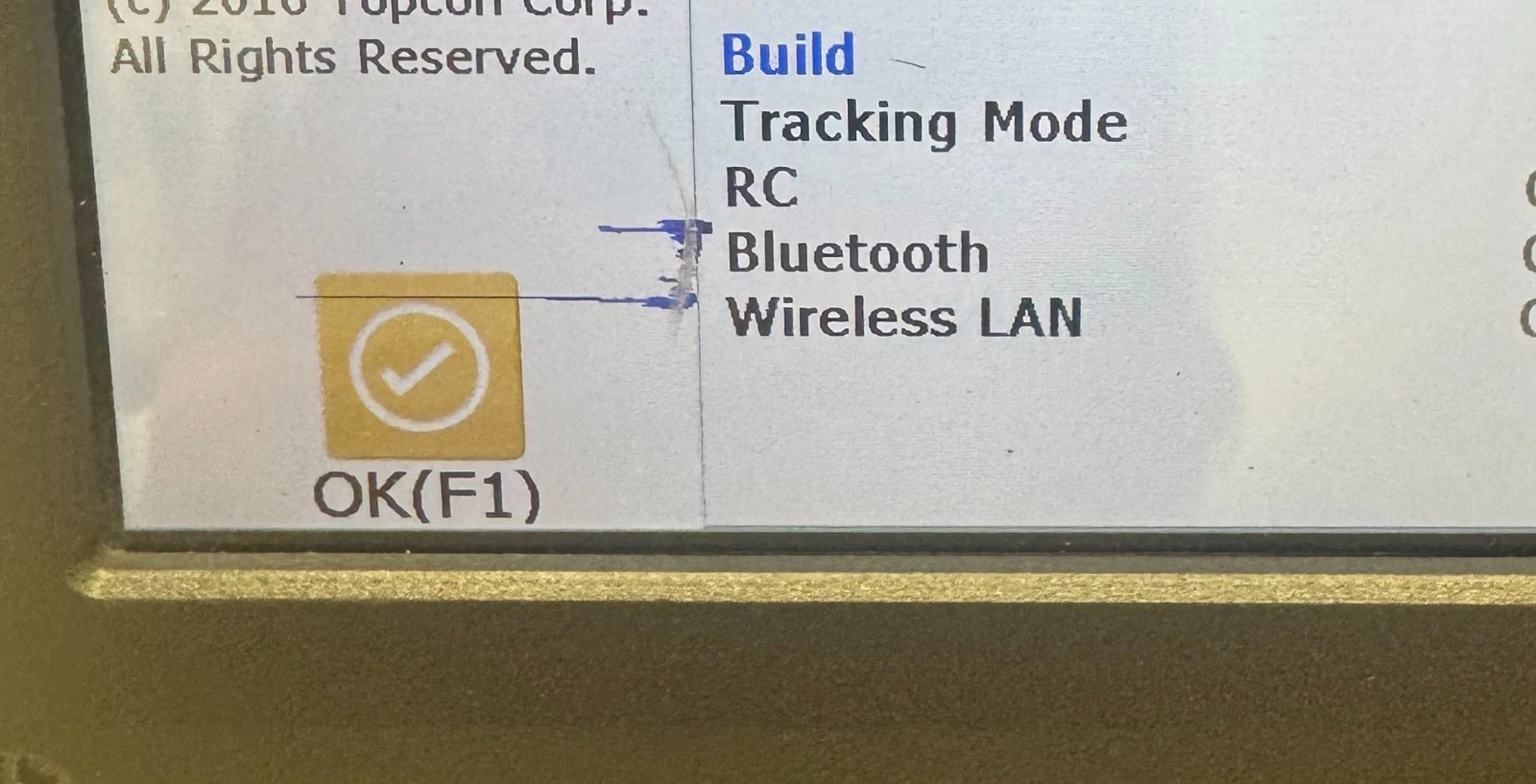

This used Topcon GT-603 Robotic Total Station powers on normally and boots fully into MAGNET Field. The instrument is functional for field use, however the screen presents a visible defect and one minor component shows physical damage — both are documented in the product photographs and should be reviewed before purchase. Cosmetic wear is consistent with professional field deployment, and the unit was calibrated in 2025.

Common Use Cases

The used Topcon GT-603 Robotic Total Station is suited for a range of professional surveying and construction applications:

• Construction layout and stakeout on civil engineering and infrastructure projects requiring 3″ angular accuracy
• Reflectorless measurement of facades, structures, and inaccessible points up to 500 m
• Topographic surveys and digital terrain model acquisition with MAGNET Field workflow integration
• As-built documentation and verification on building and road construction sites
• Backup or secondary robotic instrument for survey teams requiring field-deployable redundancy

Compatible Accessories

The used Topcon GT-603 Robotic Total Station is compatible with Topcon’s full BDC72 battery ecosystem and standard ATP1 prism sets. The unit interfaces natively with MAGNET Field and MAGNET Office for seamless data transfer and office processing. Additional charger units (CDC68A or equivalent) and carrying cases are available separately through Topcon’s authorized distributor network — note that neither is included with this listing.

What’s Included

• Topcon GT-603 Robotic Total Station main unit
• 1× rechargeable Li-ion battery BDC72
• MAGNET Field software (pre-installed)

Note: No charger included. No carrying case included.

Shipping & Warranty

This unit ships from Europe (EU) within 1 business day of payment confirmation, with worldwide delivery available — import duties and customs fees are not included in the listed price. This item is sold as-is with no operational warranty — condition including known defects is fully documented in photographs and description prior to purchase.

Why Buy From Omiwaa

The used Topcon GT-603 Robotic Total Station listed here has been inspected and its condition transparently documented, including all known defects, so procurement teams and field managers can make fully informed decisions before purchase. OMIWAA LLC specializes in sourcing professional-grade instruments from verified origins, ensuring each listing reflects the actual state of the equipment without ambiguity. At $5,999 against a retail reference of $9,990, this unit represents a 40% saving for teams able to work with or repair the noted screen defect.
